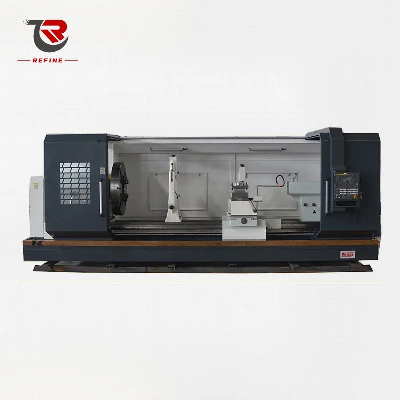

PRODUCTION DESCRIPTIONCK61125 series CNC lathe is an economical CNC machining lathe, which can be used for rough machining and finishing machining of mechanical parts. It is simple and reliable in structure, convenient in operation, economical and practical. The control system has comprehensive functions and can meet the needs of many industries. Especially suitable for automobile, machinery and other industries, rotary parts for efficient, high-volume, high-precision processing. MACHINE PICTURES PARAMETERSINDEXITEMSUNITCK61125MachiningRangeMax. Swing diameter over bedmmΦ1250Max Swing diameter over carriagemmΦ930Max work piece lengthmm4000Max. Cutting Lengthmm3850The width of the guide railmm650Chuck Diameter mmΦ1000Workpiece weightT3SpindleSpindle front end taper 1:20/15Spindle bore diametermm104Spindle Series 3 Gear, infinitely variable speed in gearSpindle speed ranger/min25-100rpm;80-260 rpm;240-700 rpmMain Motor Torque/Power 210Nm/22kWDistance from Spindle Center to bedmm625Distance from Spindle Center to the groundmm1230Feed systemX/Z -Axis fast movingm/min4/6X-Axis Travelmm625Z-Axis Travelmm3850Min set unit of X - axis feedmm0.001Min set unit of Z - axis feedmm0.001X/Z-Axis positional accuracy mm0.03/0.045X/Z-Axis Re-positional accuracymm0.012/0.02X-Axis Servo motor speed r/min1500X-Axis Servo motor torque/powerN.m/kWRated torque 15 N.m, Maximum torque 30 N.m /2.3KWZ-Axis Servo motor speed r/min1500Z-Axis Servo motor torque/powerN.m/kWRated torque 30 N.m, Maximum torque 44 N.m /5.0KWMian MotorSpeedr/min1480PowerkW11Tool RestElectric Tool rest 4-StationMotor PowerW5Tool rest size mm300*300Tangent Max torqueN.M1250Time of change tools3.6/90°Section SizeCylindricalmm32*32Inner Holemm32The tailstockdeviceTailstock sleeve diametermmΦ100Tailstock sleeve travelmm250Tailstock sleeve tapermmMorse No.6Lubrication Pump Pressure 2.5MP Flow 6L/minLubrication Pump MotorW500 / Voltage 220VLubrication mode of guide rail and lead screw Centralized lubricationCooling Pump W125 / Voltage 380VMachine Size mm6500*2200*1800Machine WeightT6 MACHINE FEATURESThe X/Z axis of the machine adopts ball screw pair, with good motion accuracy and dynamic characteristics. The tool holder adopts HONGDA electric tool holder, and the locking force can reach 28KN.4- jaw chuck, easy to operate, large clamping force, high precision.When the manual tailstock is configured, the tailstock movement is driven by the bed saddle.Fanuc ControllerCUSTOMER EVALUATIONPACKING & SHIPPING WHY CHOOSE US/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
