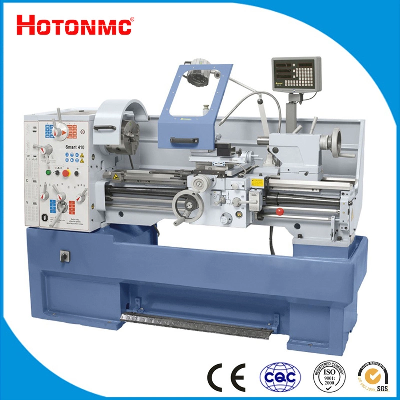

Universal metal horizontal gap bed turning lathe CD6241 CM6241 CM6241V

  METAL LATHE MACHINE FEATURES:The guide way and all gears in the head stock are hardened and precision ground.The spindle system is high rigidity and accuracy.The machines have powerful head stock gear train, high rotating accuracy and smooth running with low noise.An overload safety device is provided on the apron.Pedal or electromagnetic braking device.Tolerance test certificate, test flow chart includedSPECIFICATIONS:SPECIFICATIONMODEL C6241×1000C6241V×1500C6246×2000C6246V×1000C6246V×1500C6246V×2000Capacity Swing over bed410460Swing over cross slide220270Swing in gap diameter640690Distance between centers100015002000100015002000Valid length of gap165mmWidth of bed300mmHeadstock Spindle noseD1-6Spindle bore58mmTaper of spindle boreNo.6 MorseRange of spindle speed12 changes, 25~2000r/minFeeds and threads Compound rest travel128mmCross slide travel285mmMax.section of tool25×25mmLead screw thread6mm or 4T.P.I.Longitudinal feeds range42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev)Cross feeds range42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev)Threads metric pitches41 kinds, 0.1~14mmThreads imperial pitches60 kinds, 2~112T.P.I.Threads diametral pitches50 kinds, 4~112DPThreads module pitches34 kinds, 0.1~7MPTailstock Quill diameter60mmQuill travel130mmQuill taperNo.4 MorseMotor Main motor power5.5kW(7.5HP) 3PHCoolant pump power0.1kW(1/8HP) 3PHDimension and weight Overall dimension(L×W×H)220×108×134275×108×13325×108×134220×108×137275×108×137325×108×137Packing size(L×W×H)225×112×162280×112×156330×113×156225×112×162280×112×156330×113×156Net weight1580kg1745kg1900kg1645kg1810kg1965kgGross weight1845kg2050kg2230kg1910kg2115kg2295kg  STANDARD ACCESSORIES:OPTIONAL ACCESSORIES3 jaw chuckSleeve and centerOil gun4 jaw chuck and adapterSteady restFollow restDriving plateFace plateWorking lightFoot brake systemCoolant system  Contact Us: Andy Wang TENGZHOU HOTON MACHINERY CO.,LTDTel:0086 632 5633796MP:0086 13506328892hotonmachinery.en.made-in-china.com Company Profile:         Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.     The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.   Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers.Quality first,Constantly perfecting skills.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
