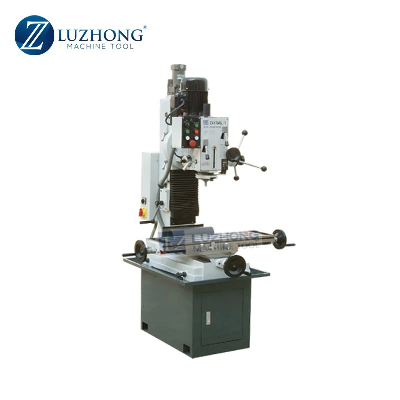

China ZAY7045L-1/ZAY7045AFG/ZAY7045AFG-1 Bench Drilling and Milling Machines

China ZAY7045L-1/ZAY7045AFG/ZAY7045AFG-1 Bench Drilling and Milling MachinesProduct DescriptionThe main performance characteristics:Milling, drilling, boring, reaming and tapping   Head swivels 90 vertical  Auto-lifting headstock electrically   Numeral depth gauge for spindle feeding     Heighten and steadier column     Micro feed precision     Adjustable gibs on table precision.     Strong rigidity, powerful cutting and precisely positioning.Standard accessories:Allen wrenchDrift SpannerDrill chuck rodScrew-driverDraw bar and gasketOptional accessories:StandOil basinPower feed attachmentMachine viceDrill chuckMilling cutter holderReducing sleeveMill chuckBoring rodTapping electrical system Coolant systemProduct ParametersProduct main technical Specifications:ITEMZAY7045L/1ZAY7045AFGZAY7045AFG/1Max Drilling capacity45mm45mm45mmMax Face mill capacity80mm80mm80mmMax End mill capacity32mm32mm32mmMax distance from spindle nose to table530mm425mm425mmMin distance from spindle axis to column280mm279mm279mmSpindle travel130mm130mm130mmSpindle taperM.T.4M.T.4M.T.4Step of speed1266Range of spindle speed  50HZ80-1575 r.p.m80-1250 r.p.m90-1600 r.p.m2 poles motor  60HZ160-3150 r.p.m100-1500 r.p.m110-1920 r.p.mAuto-feeding step of spindle/63Auto-feeding range of spindle/0.05-0.35mm/r0.12  0.18  0.025Swivel angle of headstock (perpendicular)±90°±90°±90°Auto-lifting for spindle (As customer's requirement)Auto-lifting for spindle//Table size800×240mm800×240mm800×240mmForward and backward travel of table300mm205mm205mmLeft and right travel of table585mm585mm585mmMotor power0.85/1.1KW1.5KW1.5KWNet weight/Gross weight380kg/450kg380kg/420kg330kg/380kgPacking size1030×920×1560mm770×880×1160mm770×880×1160mmDetailed PhotosCompany ProfileFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
