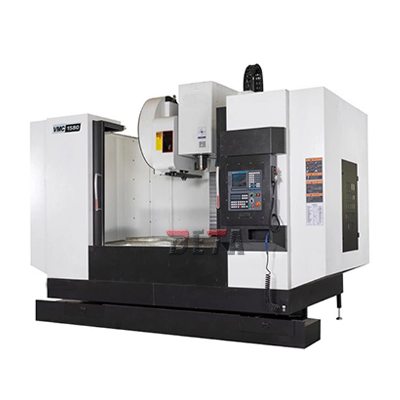

Vmc1580 3 Axis Box Guideway Vertical CNC Milling Machining Center Machine

VMC1580 3 Axis Box Guideway Vertical CNC Milling Machining Center MachineModel VMC1580   ItemsUnitsVM1580Table sizemm1700x800T-slotno5Centre distance mm135T-widthmm22Max.load of worktablekg1500Longitudinal travelmm1500Cross travelmm800Vertical travelmm700Spindle nose to table surfacemm160-860Spindle taper-BT50Spindle speed rangerpm40-6000Spindle output torque(Max.)N.M52.5/95.5Spindle motor powerkw15/18.5Cutting feed X/Y/Z-axismm/min1-10000Rapid feed X/Y/Z-axism/min18/18/15Feed motor X/Y/Z-axiskw3/3/3Tool magazine capacitypiece24Tool magazine type-Arm type tool magazineMax. Tool weightkg15Max. Tool diameter(full/empty)mm110/220Max. Tool lengthmm400Tool changing time(tool to tool/cut to cut)s2.47/6Positioning accuracymm±0.005/300 JISRepeat position accuracymm±0.003 JISOverall dimensions (LxWxH)mm4200x3110x3100Machine weightkg13000Standard Accessories:Taiwan spindle BT50-190-6000rpm , Taiwan ball screws, Box guide ways for X,Y,Z axesTaiwan arm type tool magazine with 24 tools, Spindle blowing chip removal system, Spindle air curtain protection JAPAN NACHI or German FAG bearings, Auto centralized lubrication system, Rigid tapping Two water cooling, one air coolingElectrical hand wheel, Working lamp, RS232 interface, alarm lightDNC online processingSchneider electricOptional accessories:the 4th axis rotary table 400mm with manual tail stockchain type chip removal system with flushingScrew type chip removal system with flushingRenishaw tool setting probe TS27RCoolant through spindle  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
