Horizontal Shaping Machine

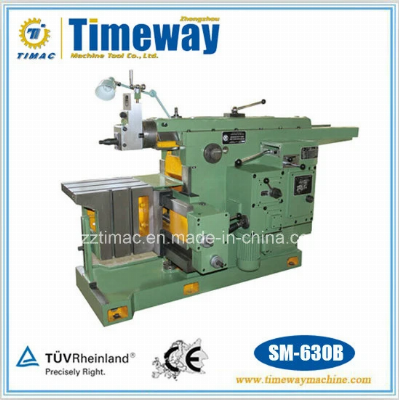

Horizontal Shaping MachineSM-500B     SM-630B    SM-680B Applications and FeaturesThe machine is designed for cutting flat and formed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special device or a dividing head and it is suitable for single piece and small batch production as well. The main cutting motion of the machine is linear motion being converted from circular motion of gears by linkblock mechanism, with smooth transmission, short over-range and less consume of power, the machine is easy tostart and stop. Being provided with a tool lifter, the worktable can rapid motion in vertical and horizontal direction. The machine with pleasing appearance and stable accuracy, operate and maintain conveniently.  Technical ParametersSpecifications UnitsSM-500BSM-630BSM-680BMax. shaping length mm500650680Max. range of the horizontal movement of the worktablemm525630630Max. distance between the ram bottom and worktable mm370380380Max. length of the vertical movement of worktable mm270315315Dimensions of worktable(L*W)mm440*360630*400680*400Max. stroke length of the toolheadmm120120120Swivel angle of the toolheaddeg.±60±60±60Max. section of tool shank(W*H)mm20*3020*3020*30Number of ram reciprocation per minutetime/min14-8014-8014-80Range of table feed(horizontal/vertical)mm0.2-2.5/0.08-10.2-2.5/0.08-10.2-2.5/0.08-1Speed of rapid travel of table(horizontal/vertical)m/min0.95/0.380.95/0.380.95/0.38Width of the T-slot for center positioningmm181818Power of the main motor kw333Power of the motor for rapid travel of worktable kw0.550.550.55Net weight kg180022002200Machine dimensions(L*W*H)mm2160*1070*11942382*1210*15042382*1210*1504 Working AccuracyFlatness of machined surface on tested workpiecemm0.0250.0250.025Parallelism of machined surface on tested workpiece to basemm0.030.030.03Parallelism of machined surface on the side to that on the other side on tested workpiecemm0.050.050.05Verticality of machined side surface on the side of tested workpiece against basemm0.020.020.02Surface roughnessumRa6.3Ra6.3Ra6.3  Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
