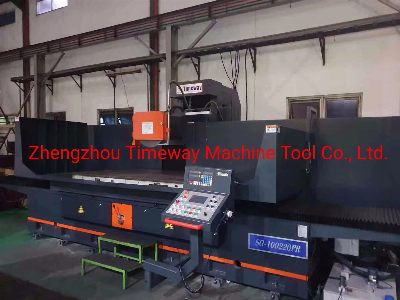

Timeway High Quality Surface Grinder

Surface GrinderFeatures:- Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.- The wheel-head spindle use the hydro-static bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear, ensure the high precision and long life span.- The transverse and vertical movement are driven by AC servo motor, and the electronic hand wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.- Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the operator.- High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low friction coefficient.- Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.- The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.Standard:Operating manualWorking lampBalancing arborSplashing guardCoolant tankWheel flangeStandard wheelWheel dresser standY/Z axis MPGLeveling wedgeWheel extractorMagnetic chuck controllerHMI+PLC auto. ground controllerOptional:Balancing standElectrical magnetic chuckMagnetic separatorPaper filterMagnetic separator and paper filterDigital readoutOil tank guardHydro drive parallel wheel dresserExtra wheel flangeParameter:SpecificationUnitSG-100220FRSG-100300FRSG-100400FRWorking areaTable sizemm1000x22001000x30001000x4000Max. ground areamm1000x22001000x30001000x4000Max. ground height(optional)mm670(830/1000)670(830/1000)670(830/1000)Magnetic chuck size(optional)mm1000x1000x21000x1000x31000x1000x4Max. loading capacity(include chuck)kg400050005000Three axis motionTable longitudinal feed speedm/min5-255-255-25Column cross motionAuto. intermittent feed ratemm/t1-301-301-30Rapid feed speedmm/min50-200050-200050-2000Feed of MPGmm/gra0.0050.0050.005Wheel-head vertical motionAuto. feed ratemm/t0.005-0.050.005-0.050.005-0.05Rapid feed speedmm/min50-200050-200050-2000Feed of MPGmm/gra0.0050.0050.005Grinding wheelRotating speed(50/60HZ)rpm960/1150(1450 optional)960/1150(1450 optional)960/1150(1450 optional)Grinding wheel size(optional)mm500x75x305(500x100x203)500x75x305(500x100x203)500x75x305(500x100x203)OthersSpindle motor powerkw18.5/2218.5/2218.5/22Oil pump motor powerkw7.51115Y/Z axis servo motor powerkw333Total powerkw374141Machine dimensions(LxWxH)mm6000x4300x26008200x4300x260010000x4300x2600Gross weightkg140001550019500PART 2---Our Services1. Free replacing parts available in the warranty period.    Cost price replacing parts available beyond the warranty period.  2. Quick action and reply for the technical questions at any time in the whole life of the     machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost    born by customer).   PART 3---FAQ1.Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.2.Payment terms: T/T, L/C, Western Union payment terms is acceptable.3.Delivery time: 60~90days....(vary as the machine's different size and complexible).4.Warranty period: 12 monthes after delivery.(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
