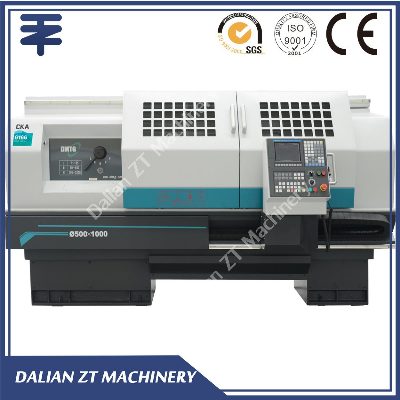

Dia. 660mm Fanuc/Siemens Controller Flat-bed CNC Lathe (Torno)

Features: This model of flat-bed CNC lathe can automatically complete the machining of internal and external cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, grooving, chamfering and other processes for various shaft and disc parts, and it can turn metric straight threads, end face threads and inch straight threads and Various turning operations such as taper thread.   NO. ITEM      Specification1 Swing over bedΦ660 mm2Swing over cross slideΦ420 mm3Max. workpiece length750/1000/1500/2000 mm4Max cutting length680 mm5Max turning diameter (vertical 4-p turret)Φ560 mm6Max turning diameter (opt: Horizontal 6-p)Φ400 mm7Max turning diameter (opt: Horizontal 8-P)Φ370 mm8Spindle center height330 mm9Bed guideway width400 mm10Spindle motor power7.5/11 kW11Spindle boreΦ82 mm12Chuck sizeΦ315 mm13Taper of spindle borefront endΦ90 mm, 1:2014Type of spindle nose D815Spindle speed ranges7-2200 rpm 3 ranges manual (opt: auto)16Tailstock quill diameterΦ75 mm17Tailstock quill travel150 mm18Tailstock quill taperMT 519Max travel of X-axis305 mm20Max travel of Z-axis685 mm21Rapid traverse of X/Z axis4/8 m/min22Tool shank size (vertical 4-position turret)25x2523X/Z axis positioning accuracy0.018/0.024 mm (1000)24X/Z axis repeatability accuracy0.006/0.011 mm (1000)25Machine overall dimensions (LxWxH)2580/2830/3330/3830x1750x1620 mm 26Machine weight (kg) 2700/2750/2850/2950    STANDARD FEATURES AND ACCESSORIES1. CNC control Fanuc Oi-TF(V) 2. Spindle servo motor 3. 3-jaw manual chuck4. Vertical 4-position turret5. Manual tailstock6. Manual 3-position gear shift (variable speed within each gear shift)7. Work light8. Coolant system9. Automatic lubricating HEADSTOCK ELECTRIC TOOL POST   AUTOMATIC LUBRICATION UNIT ELECTRIC AUTOMATIC SPEED CHANGE Quality Control & Inspection before PackingWe control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.After testing and painting before packing, we will check all the accessories item by item:Packing & Local Transportation & FixingNormally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.   FAQ 1. How can I choose the most suitable machines?A:  You can choose the exact model by yourself.  Or you can tell us your specifications, to let us choose the best model for you, too. You can also send us the product drawing, and we will choose the most suitable machines for you.  . 2. When do you deliver?A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are 100% new and not used, only made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.  3. Is machine tested?A: The accuracy, noisy will be tested according to China GB standard. Some machines will  4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5. What's the Payment Terms?A : T/T 30% down payment when order ,70% balance payment before shipment ;Irrevocable L/C at sight also acceptable. 6. Do you accept cash or L/C?A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account. 7. What's the MOQ?A: 1 set (Only some low cost machines will be more than 1 set) 8. How is the warranty?A: 12 months after shipment date9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.A: Video technical support, online service, we can answer you in 24 hours.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
