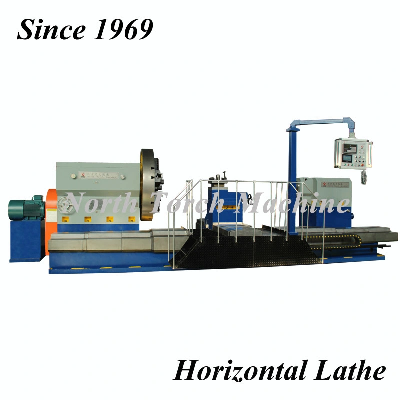

Popular High Quality Roll Turning Horizontal CNC Lathe Machine Ck8463

Professional Roll Turning CNC Lathe Machine, Horizontal Lathe, CNC Machine tool For Turning Cylinder, Shaft, Roll, Slots of Flange,Bearing,Wheel, Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc   This series Professional Roll Turning CNC Lathe Machine can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.   Our Principle : Maximize Customer's Profitability under the minimum invest cost.Application: This horizontal cnc lathe  machine is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of various metal parts. Δ CE, EAC, SGS, BV Certificates  Δ 3D drawings of cnc lathe machine, roll turning lathe, heavy duty horizontal latheΔ Customized Roll Turning CNC Lathe Machine 1. Machine Color Per customer's request: the moving part of lathe machine should be yellow, the rotation part of cnc lathe machine should be red color2. We also designed a simple operator barrier and cover to prevent the machining chips coming into the operator side. 3. SIEMENS 828D CNC Control System with shopturn function. 4. SKF Lubrication Oil Pump5. EAC, CE BV, SGS certificated6. Tailstock has pressure sensor display device to  show the clamping pressure of work-piece between headstock and tailstockΔ Technical Parameters of roll turning lathe, cnc lathe machine, lathe, cnc machine tool, heavy duty lathe  CK84--Roll Turning Lathe Machine NameUnitCK8465CK8480CK84100CK84125CK84160CK84200Guide Rail Type   4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails                            Max.Diameter of Work-piecemmφ650mmφ800mmφ1000mmφ1250mmφ1600mmφ2000 mmGuide Rail Width of Machine Bedmm1000mm1100mm1400mm1600mm1800mm2000mmChuck Diametermmφ1000mm φ1100mm φ1400mm φ1600mm φ1800mmφ2000mm Chuck Jaw Lengthmm250mm 250mm320mm320mm320mm320mmMax.Length of Work-piecemm4000mm5000mm8000mm12000mm150000mm20000mmWork-piece Weight T10T18T25T32T40T50TSpindle Diametermmφ190mmφ220mmφ260mmφ300mmφ300mmφ360mmSpindle Speed r/min5-260r/min2-165r/min2-130r/min2-130r/min2-80r/min0.5-80r/min                                       Spindle Tips Size Metric 120 1:7Metric 120 1:7Metric 120 1:7Metric 120 1:7Metric 160 1:7Metric 160 1:7 X Axis Stroke mm50-325mm50-400mm`50-500mm100-625mm100-800mm200-1000mmZ Axis Stroke mm1000-4000mm1000-5000mm2000-8000mm2000-12000mm3000-15000mm3000-20000mm X axis Rapid Speedmm/min2000mm/min2000mm/min2000mm/min2500mm/min2500mm/min2500mm/minZ axis Rapid Speedmm/min2500mm/min2500mm/min2500mm/min2500mm/min2500mm/min3000mm/minTailstock spindle diametermmφ240mmφ290mmφ290mmφ320mmφ320mmφ410mmTailstock sleeve stroke mm300mm300mm300mm300mm300mm300mmMoving method of tailstock Electrical controlElectrical controlElectrical controlElectrical controlElectrical controlElectrical controlMax.cutting force of single tool KN60KN80KN80KN80KN100KN150KNMax.Torque of Chuck KN·m13KN·m22KN·m33KN·m40KN·m90KN·m233KN·mTotal cutting force KN45KN60KN70KN110KN160KN210KNMotorMain Motor PowerKW22KW37KW45KW55KW75KW 128KWLubrication Motor Power KW0.37KW0.37KW0.55KW0.55KW0.55KW0.55KWAccuracyCylindricity mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mmPlatnessmm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mmRoughnessRaRa3.2Ra3.2Ra3.2Ra3.2Ra3.2Ra3.2Machine Size mm6000*2000*14007500*2200*165081000*2750*195010000*3100*215010500*3200*240012500*3600*2650Machine Weight T20T23T26T35T46T65TRermarks: 1. The above  models of CNC Lathe Machine, Roll turning lathe, cnc lathe, lathe machine are the standard configurations, we can also design and manufacture customized lathe  machine according to the user's workpiece features. Δ   PACKAGE & TRANSPORTATION OF CNC LATHE MACHINE, Roll turning lathe, CNC Lahe Machine. 1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.2. Warranty period: One year after acceptance of the lathe.3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.For more details, please feel free to contact us. Thanks!https://qingdaontm.en.made-in-china.com/contact-info.ht
