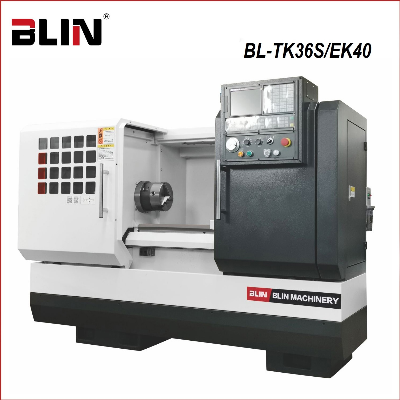

High Quality CNC Lathe Machining for Metal Turning (BL-TK36S/EK40)

- Adopt China best high strength compound resin sand cast iron- Aging treatment,has good vibration absorption and rigidity- Adopt independent spindle,3000rpm high speed, especially suitable for nonferrous metal processing  - Spindle unit adopt precise angle contact ball bearing and double column cylindrical roller bearings- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force   - Adopt independent coolant tank designItemSpecificationUnitBL-TK36SBL-EK40CapacityGuideway widthmm316Max. swing dia. over bedmmΦ360Φ400Max. swing dia. over slidemmΦ180Φ200Max. turning dia. mmΦ320(vertical 4T tool turret);Φ220(horizontal 6T tool turret)Φ400Center distance mm750/690/650(vertical 4T/horizontal 6 T tool turret/Φ75mm tailstock quill)750/1000Max turning length               mm600/540/500(vertical 4T/horizontal 6 T tool turret/Φ75mm tailstock quill)580/830Max. workpiece weightkg550(8'' manual chuck)SpindleSpindle boremmΦ57Spindle head type/ISO702/ I A2-6(manual chuck, 8'' hydraulic chuck);ISO702/ I A2-5(6'' hydraulic chuck)Spindle speedrpm140~3000(stepless) Spindle motorkw5.5(servo)Chuck size/8''X/Z axesX axes travelmm200/150(vertical 4T/horizontal 6T tool turret)230Z axes travelmm610/550/510(vertical 4T/horizontal 6 T tool turret/Φ75mm tailstock quill)590/840X/Z axes rapid speedm/min6/8X,Z axes ball screw O.D./pitchmmΦ25/5,Φ40/6Tool post Tool turret type/Vertical 4/Horizontal 6 station/gang toolTool shank sizemm20×20,Φ32TailstockTailstock quill dia./travelmmΦ55/120(hydraulic tailstock: 100);Φ75/150(hydraulic tailstock:130)Φ65/120Tailstock quill taper/MT4#/MT5#(Φ75mm tailstock quill)MT4#AccuracyX/Z axes positioning accuracymm0.026/0.0320.026/0.032(750mm);0.036(1000mm)X/Z axes repeatability positioning accuracymm0.007/0.0090.007/0.009(750mm);0.011(1000mm)Turning workpiece roundnessmm0.004OthersTotal powerKVA12N.W.kg17001700(750)/2100(1000)Overall size(L×W×H)mm2150×1260×16002150×1260×1600(750mm)2400×1260×1600(1000mm)Main parts list:ItemBrandSpindle bearingCHINA top-CSC/ZWZBall screw bearingCHINA top-CSCBall screwCHINA topLubrication pumpJAPAN-LUBEStandard configuration: - FANUC 0i TF CNC Controller- Manual chuck - 4 station tool post- Manual tailstock  Optional configuration: - SIEMENS 808D/GSK980TDi - Hydraulic chuck  - 6 station tool turret  - Hydraulic tailstockOther models choice:All our machines range:About us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
