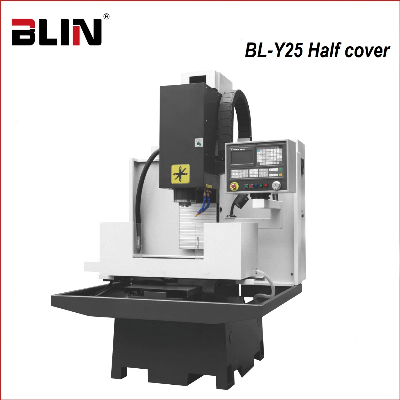

High Quality CNC Milling Machine with Germany Technology (BL-Y25)

- Adopt mature conventional CNC milling machine structure, good stability  - SWALLOW-TAIL shape HARD guideway- Without tool magazineDetails:ItemSpecificationUnitBL-Y25WorktableTable sizemm700×260T slot(NO./width/gap)mm3/14/63X/Y/Z axesX/Y/Z axes travelmm400/250/280X/Y/Z axes ball screw(dia./pitch)mm32/6Cutting feeding speedm/min6~10Rapid moving speedm/min15Positioning precisionmm±0.01Repeatable positioning precisionmm±0.008SpindleMax. distance from spindle nose to worktable surfacemm380Distance from spindle center to column surfacemm250Spindle type/BT40Spindle motorkw2.2(inverter)Spindle speedrpm6000Tool magazineTool magazine type/N/AOthersOverall size(Half closed cover)mm1510×1200×2010Overall size(Full closed cover)1760×1840×2010N.W.(Half/Full closed cover)kg1300/1500Main parts list:Item BrandBall screw bearingCHINA top-HRB P4 class/Z axes NSKBall screwCHINA topDishing springGERMANYSpindle unitTAIWANInveter TAIWAN TECO/JAPAN YASKAWABooster cylinderTAIWAN Pneumatic partsTAIWAN-AIRTACElectricity partsFRANCE-SCHNEIDER Lubrication pumpJoint-ventureStandard configuration: -SIEMENS 808D ADVANCED CNC controller                             -Half closed cover Optional configuration: -GSK980MDc CNC Controller     -Step feeding motor  -Full closed cover                                     -4th axes  Other models choice:All our machines range:About us:    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
