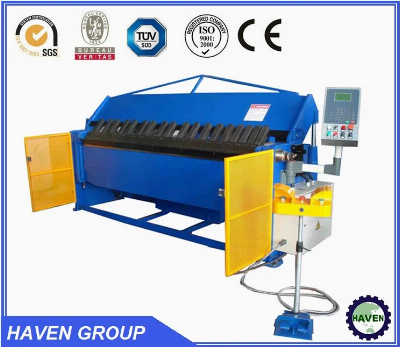

W62Y Series Hydraulic Pan Box Press Brake

                                                       Hydraulic Pan Box Press BrakeMachine details:Main functions:Full welded-steel plate construction. Stress relived to ensure continued high accuracy; Machine is hydraulically powered; Low energy consumption, easy to maintain and very durable; Under acting die is fully adjustable with open height up to 110mm and suitable for producing disk, box like wokrpiece; The bending angle and back gauge is controlled by numerical control system, rapidly and accurately Main specification:ModelW62Y-3x2500W62Y-4.5x2500W62Y-4x3100W62Y-5x2000Nominal pressure KN1000100010001000Strokes   Min-114141414Throat depth mm200200200200Folding length mm2500250031002000Folding thickness mm0.5-34.540.5-5Max angle of bending beam1101101100-125Max lifting height of the upper beam200200200200Motor power5.55.55.55.5Net weight kg3500360043002850Dimension cm330x100x140360x106x200420x106x200310x106x200  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
