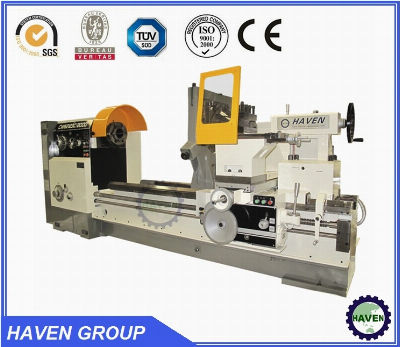

CW62123C Horizontal Gap Bed Lathe Machine

                                    CW62123C Horizontal Gap Bed Lathe MachineMain feature:The lathe machine can perform to turn end face, cylindrical surface and internal holes of various parts as well as metric, inch, module, and pitch threads. The top slides can be operated indivedually by power for cutting short taper surface also., can be turned auto through compound movement combining longitudinal feed with top slide feed, moreover, the machiens may be used for drilling, boring and trepanning. Standard accessories:4 jaw chuck diameter is 500 mm;dead center; center sleeve ;reduction sleeve;working lamp;coolant system;tools and tool box;Main specification:ItemUnitModelCW61103CCW62103CCW61123CCW62123CCW61143CCW62143CCW61163CCW62163CCW61183CCW62183CSwing in bed mm10301230143016301830Swing in gap mm12001400160018002000Swing over cross slidemm700900110012401440Distance between centersmm1500,2000,3000,4500,6000Length in gap from face plate mm380Spindle nose C11 or D11Spindle boremm105,130 (optional)Spindle speedrpm/steps10-800/18     7-576/18     6-480/18Cross slide travelmm615          715        815    915Top rest travelmm225                  300Rapid traversemm/minZ:3200,X:1400Quill diametermm120Quill travelmm270Quill taper MT6Bed widthmm610Metric threadsmm/kinds1-240/53Inch threadstpi/kinds30-2/31Module threadsmm/kinds0.25-60/42Diametral pitch threadstpi/kinds60-0.5/47longitudinal feedsmm/r0.07-16.72Main motor powerkw11/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
