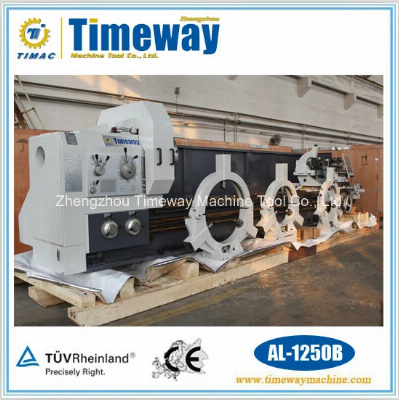

Heavy Duty Industrial Lathe Machine

Features: 1. These lathes are suitable for turning cast iron and steel workpiece, turning of nonferrous metal parts of big or medium sizes. 2. It can do external cylindrical surface turning, inner hole and end face turning. 3. It can also turn various internal and external metric, inch, module and diametrical pitch threads, the top slide can be used independently for turning of short taper. 4. These lathes are of high power, high rigidity and wide rotating speed range, so it can be used for high speed and strong force turning. 5. Bed with high rigidity Casted in whole piece, box type internal structure, of high rigidity, with hardened guideway, TSF coated carriage to minimize the possibility of low speed stick-slip.  6. Main spindle with high rigidity and high accuracy    Spindle comes with bearing of famous brand, spindle-box of heat-symmetrical structure to avoid spindle axis drifting, oil lubricating to minimize heat distortion.    Spindle comes with three support structure to secure accuracy and increase rigidity, all gears quenched and tooth-ground to secure precise transmission and low noise, so the spindle is of low temperature rise, minimized heat distortion, and long-term steady high accuracy. Optional accessaries: Big center rest; Big centering bracket; Motor Driven Tailstock and Tailstock with totarg guill; Chuck guard, tool post shield, cable carring chain.   ModelAL-1000BAL-1250BAL-1600BCapacitiesSwing over bed1000mm1250mm1600mmSwing over carriage615mm865mm1250mmMax. length of workpiece1500;3000;5000;6000;8000;10000;12000(mm)Max. turning length1300;2800;4800;5800;7800;9800;11800(mm)Span of guideway755mmSpindleSpindle noseA215(8×M22)mmSpindle holemorse 6(mm)Taper hole of spindle1:20/140Number of forward turning speeds21Number of reverse turning speeds12Spindle speedForward3.15~315(r/min)Reverse3.5~291(r/min)Feed motionNumber of feeds per  revolution(longitudinal/transverse)56/56Feed per revolutionLongitudinal0.1~12(0.004"~0.473")mmTransverse0.05~6(0.002"~0.236')mmUpper tool-post0.025~3(0.001''~0.118")mmNumber and range of metric thread44;1~120mmNumber and range of inch thread31; 28~1/4"Number and range of module thread45;0.5~60mmNumber and range of diametrical pitch thread38;1/2~56DPTool postDistance between spindle centerline and tool resting plane48mmSection of tool shank45mmTool post swing range±90°Max. travel of carriage140;2950;4950;5950;7950;9950;11950(mm)Max. travel of top slide300mmMax. travel of cross slide500(20")mm580(22'')mm630(24")mmTool post travel per turn of the slide of top or cross slide0.05(0.002")mmRapid travel speedLongitudinal3740mm/minTransverse1870mm/minTop slide935mm/minTailstockDiameter of tailstock quill160(6'')mmTravel of tailstock quill300(12")mmTaper hole of tailstock quillMorse 6Acceptance conditionsGB/T4020-1997 Accuracy parallel lathe JB/T2322-1993  Terms parallel lathe OthersMain motor power22kwMax. weight ofworkpiece6000kgMachine overall dimensionLength4600;6100;8100;9100;11100;13100;15100(mm)Height1700mm1825mm2150mmWidth2150mmMachine massAL-1000B9200;10700;12100;12800;14200;15600;17000(kg)AL-1250B10200;11800;14800;15500;16900;18300;19700(kg)AL-1600B11400;12900;15900;16600;18000;19400;21000(kg) Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality war
