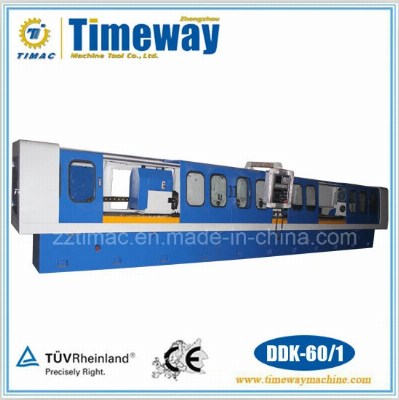

CNC Horizontal Gun Drilling Machine for Deep Hole Drill

CNC Deep Hole Gun Drillig Machine (Single Spindle)DDK-50/1     DDK-60/1   Performance and Features*The series CNC deep hole drill machine is the dedicated drilling machine with high efficiency, high  precision and high automation.  *When drilling the hole with the diameter of Φ8-30mm, It adopts the type of external chip removal (gun-drill  method), through one-off drilling process;  When drilling the hole with the diameter of Φ30-60mm, it  adopts the type of BTA internal chip removal. *It can finish several procedures including drilling, expanding and reaming, which is generally conducted  by different machines in the conventional process. This machine achieves the excellent machining  accuracy and surface finish.  *The machine adopts all rotation of workpiece and tool while the tool is feeding. It can also fix the  workpiece and make the tool rotating and feeding.  *The machine adopts CNC system and has automatic cycle function. and it can achieve single action and  automatic cycle action.  *The machine can process center hole and eccentric hole. So it is specially suitable for mass production. *The different holes are available to be processed by this machine including through hole, blind hole and  step hole. Technical ParametersSpecificationsUnitDDK-50/1DDK-60/1Drilling dia. rangemm8-508-60Max. drilling depth of workpiecemm500, 1000, 1500, 2000500, 1000, 1500, 2000Max. length of the workpiecemm500, 1000, 1500, 2000500, 1000, 1500, 2000Headstock spindle speed ranger/min60-1000 60-1000Drill box spindle speed range (stepless)r/min100-2000100-2000Feed speed range (stepless)mm/min10-50010-500Workpiece clamping diameter rangemm300300Feed rapid speedm/min22Feed motor torqueN.m1818Headstock motor powerkw1515Drill bar box feeding motor power (stepless)kw1515Work pressure of cooling system (adjustable)MPa1-51-5Cooling system flow (adjustable)L/min6-100 (1 group)100 (1 group)6-100 (1 group)100 (1 group)Drilling diameter-length ratio 1:1001:100Machine total powerkw5050Coolant fitering precisionµm2020CNC system SIEMENS or other CNC system*Notes: The headstock is optional. If without headstock, you can save costs; If with headstock, you can  higher processing efficiency.   Packaging & ShippingFirstly packed by waterproof cloth and then in wooden case. Few parts may need to be taken down and be packed in wooden case. According to customer's different require, wo can adopt different packaging. Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.   Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.  Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we wil
