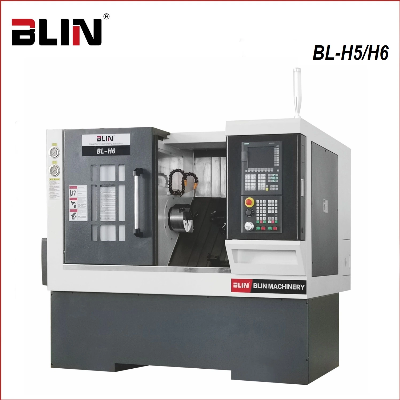

High Quality CNC Metal Lathe Machine, Precision Lathe (BL-H5/H6)

- Adopt TAIWAN technology, most parts adopt GERMAN/JAPAN/TAIWAN brand - Adopt 45°mono-block slant bed design - Adopt wide linear guideway,high rigidity - Adopt modularization design, easy for various especial configuration choice, such as tool setter etc - Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability     - Base adopt multilayer strengthening rib, ensure bed's strength and stability  - Adopt high precision spindle unit(H5 can choose 6000rpm synchronous servo electro-spindle), spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range - Adopt high precision C3 class pre-stretched ball screw,coupled with feeding motor directly by linkager, no gap Details:* As option ItemSpecificationUnit BL-H5BL-H6CapacityChuck size/collet/5'' chuck*6'' chuck/8'' chuck*8'' chuck/10'' chuck*Max. swing dia. over bedmmΦ320 Φ400Max. swing dia. over slidemmΦ126Φ126Max. turning lengthmm320 340(Gang tool);300(8T tool turret)Max. turning dia.mmΦ300 Φ300Standard turning dia.mmΦ120Φ150 SpindleSpindle boremmΦ36Φ46Φ56Φ66Spindle end type/A2-4 A2-5A2-6Max. bar through dia.mmΦ24Φ35Φ45  Φ51Spindle speedrpm6000 500050004000Spindle motor powerkw5.5 7.511X/Z axesX axes travelmm420 460Z axes travelmm320340X/Z axes linear guideway widthmm30/3035/35X axes ball screw O.D/pitchmmΦ25/10Φ32/10Z axes ball screw O.D/pitchmmΦ32/10Φ32/10 X/Z axes rapid moving speedm/min30/30Tool postTool turret type/Gang tool   Gang tool/8T hydraulic tool turret*Toolshank sizemm20×20, Φ2520×20, Φ2525×25, Φ32TailstockTailstock quill taper/None  AccuracyPositioning accuracy(X,Z)mm0.008/1000 Repeat positioning accuracy(X,Z) mm≤0.005  OthersOverall sizemm1750×1590×1800 2140×1780×1780N.W.kg190027002800Main parts list:ItemBrandSpindle unitCHIAN top brand synchronous servo electro-spindle/TAIWAN-ROYALTool turretTAIWAN-GSA/YULIN/SWIFTBall screwH5: TAIWAN-HIWIN C3 classH6: JAPAN-THK  Ball screw bearingGERMANY-FAGLinear guidewayH5:TAIWAN-HIWIN P classH6: JAPAN-THKLubrication systemTAIWAN-ISHANRotary oil cylinder&chuckTAIWAN-AUTOGRIPHydraulic partsTAIWAN/JAPANHeat exchangerJoint-ventureMain electricity partsFRANCE-SCHNEIDERStandard configuration: -SIEMENS 808D ADVANCED CNC controller -Hydraulic collet/chuck -Gang tool/8T hydraulic tool turret Optional configuration: -SYNTEC/FANUC CNC controller   -Live tool  -Chip conveyor -Bar feeder  Other models choice:All our machines range:About Us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
