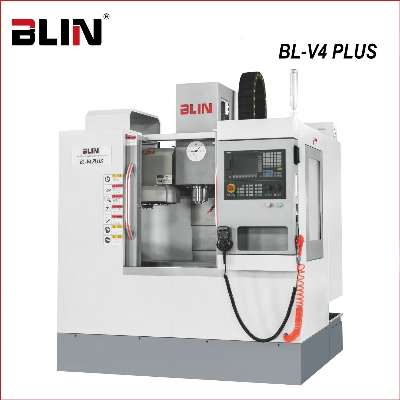

CNC Vertical Milling Machine (BL-V4 PLUS)-3 axes adopt high precision linear guideway -Designed by GERMAN engineer -Whole production process accord to TAIWANESE standard -Chips outlet set at the back of machine -Most parts adopt GERMAN/JAPANESE/TAIWANESE brand -High speed, high precision, long using lifespan -Adopt HT300 high class cast iron,after aging treatment and FEA analysis -Bridge shape column, high rigidity, high stability -3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching,pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision Details:ItemSpecificationUnitBL-V4 PLUS WorktableTable sizemm800×320Table max. loadingkg200T slot(NO./width/gap)mm3/14/100TravelX/Y/Z axesmm450/300/480SpindleDistance from spindle nose to table surfacemm105~585Distance from spindle center to column surfacemm375Spindle typemmBT40/Φ120 7:24Spindle motorkw3.7(option:5.5kw)Spindle speed rpmBelt-drive: 8000/10000Direct-drive: 12000Feeding axesX,Y,Z axes ball screw O.D./pitchmm32/12X,Y,Z axes linear guideway widthmm30X/Y/Z axes motor Nm6/6/11(SIEMENS 808D)Cutting feed speedm/min12X/Y/Z axes rapid moving speedm/min36/36/24Positioning precisionmm±0.005Repeatable positioning precisionmm±0.003Tool magazineTool magazine/Umbrella type 12T/Arm type 16TMax. tool weightkg8(Arm type 16T)Max. tool lengthmm220(Arm type 16T)Max. tool dia.(fully loaded)mm78(Arm type 16T)Max. tool dia.(no adjacent)mm120(Arm type 16T)OthersOverall dimension(L×W×H)mm1830×1870×2120Weightkg2400Main parts list:ItemBrandSpindle bearing JAPAN-NSKBall screw bearingTAIWAN-TPIBall screwJAPAN-THK/TAIWAN-HIWINLinear guidewayJAPAN-THK/TAIWAN-HIWINSpindle unitTAIWAN-VYU CHEN Tool magazineTAIWAN-OKADABooster cylinderTAIWAN-HAO CHENGLubrication pumpTAIWAN-BEISUNPower switchTAIWAN-MEANWELLPneumatic partsTAIWAN-AIRTACElectric partsFRANCE-SCHNEIDERStandard configuration:-SIEMENS 808D ADVANCED CNC controller -12T Umbrellal type tool magazine Optional configuration: -SIEMENS 828D/FANUC 0I MF/GSK218MC -16T Arm type tool magazine-4th axes rotary table Other models choice:All our machines range:About us: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
