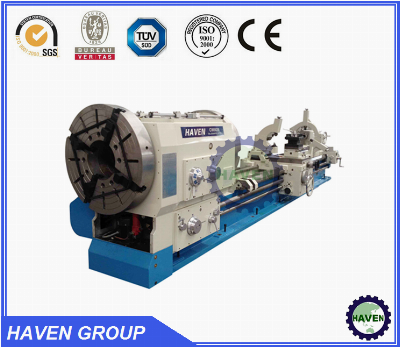

CW6636 Horizontal Large Spindle Hollow Oil Country Lathe

                                     CW6636 Horizontal Large Spindle Hollow Oil Country LatheMain feature:This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity, high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used, it is safe and reliable the reliability of the machine could be ensured, Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control. Main specification:NameCW6636CW6646CW6663Max.swing .overbed1000mm1200mm1400mmMax.swing over turret640mm800mm1100mmSpindle bore360mm460mm635mmRange of spindle speed6.3-315rpm6.3-315rpm5-250rpmChuck diameter1000mm1000mm1250mmMIN.clamping diameter of chuck240260500Metric thread44 1-120mmWhtworth37 30-11/8teethModule threads46 0.5-60mmDiametrical thread46 0.5-60D.PRapid traverse of turret3740mm/min1870mm/min 935mm/minMax.machining length of taper the scale300mmTurning taper±1:4Diameter of tailstock sleeveΦ 160mmPower of main motor22KW 30KW/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
