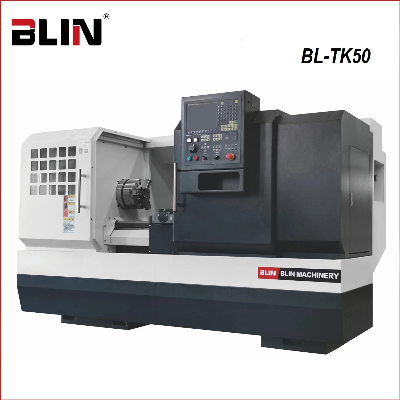

High Rigidity Flat Bed CNC Lathe (BL-TK50)

- Adopt China best high strength compound resin sand cast iron - Times aging treatment,has good vibration absorption and rigidity - Guideway hardened by ultrasonic frequency and precise ground, after scrapping, good precision keeping  - Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force - Spindle use high precision bearing  - Adopt Independent spindle,servo spindle motor  Details:ItemSpecificationUnitBL-TK50Capacity Guideway widthmm390Max. swing dia. over bedmmΦ500Max. swing dia. over slidemmΦ280Max. turning dia. (vertical 4T/horizontal 6T tool turret)mmΦ500/350Max. workpiece lengthmm1100/1600/2100/3100Max turning length              mm1000/1500/2000/3000Max. workpiece weightkg700(10'' manual chuck)SpindleSpindle boremmΦ87Spindle head type/ISO702/A2-8Spindle taper hole/Metric 1:20Spindle speedrpm30~2500Spindle motorkw15(servo)Spindle max. output torqueNm354Chuck size/10''X/Z axesX axes travel(vertical 4T/horizontal 6T tool turret)mm275/235Z axes travelmm1000/1500/2000/3000X/Z axes rapid speedm/min6/8X,Z axes ball screw O.D./pitchmmΦ25/5,Φ40/6Tool post Tool turret type/Vertical 4/Horizontal 6 stationTool shank sizemm25×25TailstockTailstock quill dia.mmΦ75(hydraulic tailstock: Φ80)Tailstock quill travelmm150(hydraulic tailstock: 130)Tailstock quill taper/MT5#AccuracyX/Z axes positioning accuracymm0.026/0.036(1000),0.040(1500,2000,3000)X/Z axes repeatability positioning accuracymm0.007/0.011(1000),0.014(1500/2000/3000) Turning workpiece roundnessmm0.004OthersN.W.kg2800/3200/3600/4600Overall size(L×W×H)mm2700/3200/3700/4700×1500×1700* The marked accuracy just follows CHINA national standard GB/T 25659.1, actual accuracy is much higher Main parts list:ItemBrandSpindle bearingCHINA top-CSC/ZWZBall screw bearingCHINA top-CSCBall screwCHINA topLubrication pumpJAPAN-LUBEStandard configuration:-FANUC 0i TF CNC Controller -Manual chuck  -4 station tool post -Manual tailstock Optional configuration:-SIEMENS 808D/GSK980TDi -Hydraulic chuck  -6 station tool turret  -Hydraulic tailstock Other models choice:Our machine range:About us:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
