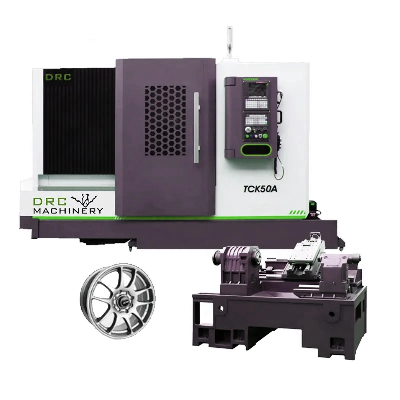

Factory Ce Certified After Sales Provided Cnc Lathe And Milling Machine ModelTCK 46A (GSK998T system)Standard accessoriesUnit ( mm )Maximum turning diameter of bedΦ460Maximum turning diameter of cross slideΦ170Maximum processing length350Standard chuck specifications8 inch Bedford/TaiwanHydraulic knife tower8 station(Optional)12X axis maximum stroke240Z axis maximum stroke400Spindle speed3500rpmSpindle speed stagesteplessSpindle end codeA2-5Spindle through holeΦ56Pull tube through holeΦ45Maximum diameter of boring toolΦ32Cutting feed rate1-15000mm/minX/Z motor torque7.5/7.5/NM(X direction with brake)X/Z axis rapid movement rate18/18m/minTool body size of turning tool25*25Spindle motor power5.5KWSleeve diameter70Sleeve stroke80Turret center high dimensions80Spindle unitΦ170Screw bearing35/35/PMI/HIWIN/TaiwanX/Z Ball Screw7206B/DB/P5/PMI/HIWIN/NSKThe X/Z axis screw specifications3210/4010Taper hole of tailstock sleeveMT5#Maximum stroke of tailstock200Dimensions (length × width × height)2500*1700*1890Total Weight2600KGMain accuracy index of machine tool Test itemsStandard tolerance(mm)Periodic axial movement of the spindle0.005Radial runout of the positioning cone of the0.005PositionX:±0.003 Z:±0.003Repeat positioning accuracy AX:±0.003 Z:±0.003Diameter consistency0.01/150Flatness0.02/φ200Thread pitch product error0.010/50Surface roughnessRa1.6μm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
