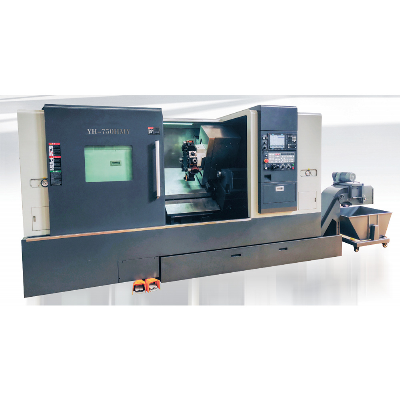

CNC Lathe Machine

Product DescriptionServo-powered turret features:Fast and precise tool change for servo turret, combined with high-speed power shaft for powerful milling and turningExcellent machining capability in combined milling typeHighly machinable BMT installation interfaces for tool holdersServo spindle motor for the power transmission shaftPower output by DIN 1809 linear shapedRotating tool speed up to 5000RPMAdopting a positive Y-axis design, the center of gravity driving structure in the box is integrated with the turret, ensuring balanced force during processing;Equipped with high rigidity servo-powered turret, it realizes axial and radial Y-axis milling functions, spindle C-axis interpolation, indexing,positioning functions, and spindle oil-pressure disc brake.Product Parameters Main parameters (Unit: mm)ParametersModelYH-750HMY/1000/1500/2000Main parametersTurning diameter on the bed surfaceφ920    mmMax. machining diameterφ600mmMachining diameter on the slideφ440mmMax. machining length530/830/1430/2030Spindle and chuck parametersSpindle head formA2-8(10") optional A 2-11(12")Spindle motor power22KWMax. spindle speed2800rpmSpindle bore diameterφ87mmBar through-hole diameterφ75mmFeed part parametersX/Z axis screw spec.4008/3208/5010X-axis limit stroke325mm/±60X and Z axis motor torque30N.MZ-axis limit stroke760/1085/1685/2285X and Z axis connection methodDirect connectAccuracyMachining accuracyIT6Repeatpositioning accuracy0.003mmServo turretServo-powered turretBMT65/ER32/4000rpmTool size25  × 25Boring tool holder dimensions40mmTailstock partSleeve diameter100mm130mm (with optional built-in rotation)Sleeve stroke80mm80mmMaximum tailstock stroke785/1085/1685/2285Tapered bore of tailstock sleeveMohs  5#ShapeBed form and slope (L×W×H)Integral/30°4200×1900×1850WeightWeight (approx.. weight)T75/8.5/10.5/12.5TSystems available: FANUC, MITSUBISHI, SIEMENS, GSKDetailed Photos /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
