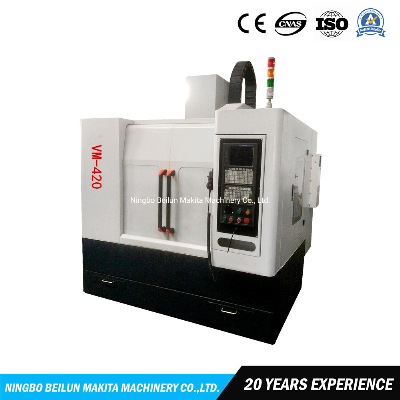

Vm-420 3 Axis CNC Vertical Milling Machine Machining Center

VM-420 3 Axis CNC Vertical Milling Machine Machining CenterIntroduction 1.The main structure body is analyzed by finite element. The machine base, column, spindle box, cross slide table and work table are made of high quality precision casting. After secondary aging treatment, the stability of long-term processing can be ensured.2.The VM-420 spindle is equipped with a Taiwan spindle unit with a maximum speed of 8000 rpm.3.X Y two axes adopt imported wire rail, Z axis adopts hard rail, which increases support stiffness and machining precision. The triaxial lead screws are pre-stretched to prevent heat distortion during high-speed operation and ensure accuracy.4.Adopt Taiwan precision screw, Taiwan surplus tin lock nut, screw bearing adopts Japan NSK bearing, with flexible coupling directly connected, small backlash, sensitive transmission, high precision and so on.5.Each transmission shaft spacing adopts high-precision auroral interferometer to perform fine compensation of pitch error and gap error, which makes the positioning accuracy of each axis more accurate, and is more suitable for machining high-precision parts.6.The electric cabinet is equipped with air conditioning system and exchanger (optional air conditioning). The cooling capacity ensures that the machine works normally during the high temperature season and prolongs the life of the machine.7.Lubricate the moving parts such as guide rails and lead screws with automatic quantitative gap centralized lubrication device.8.The front sliding door and the door glass are made of thick clamped tempered glass to improve safety. FeatureThe VM-420 machine is suitable for precision machining of complex parts such as plates, discs, housings, molds, etc. Machine tools with automatic tool change CNC, fully enclosed protective cover, automatic lubrication system, cooling system, rear chip removal device, parts One-time clamping can complete precision machining of milling, boring, drilling, expanding, reaming, tapping and other processes, and optional fourth-axis machining. ToolLarge-capacity tool magazine for loading multiple tools at once. In the one-time processing of a variety of workpieces, there is no need to fill the knife during processing, which greatly saves cutting time. Disc-type tool magazine for faster tool change. Reduced non-cutting time and greatly increased productivity.Operating ConvenientThe new control panel combines a user-friendly operating keyboard. Rotating the embedded operation console from multiple angles brings convenience to the operator.SpecificationItemParameterVM420TravelX axis420mmY axis300mmZ axis400mmDistance from spindle end to table125-525mmDistance from spindle center to column410mmGuide formX/Y/Z axislinear rail/linear rail/hard railWork tablearea650*380mmmax load200kgT slot (No*Width)3*14mmSpindlespeed8000rpmtaperBT-40power3.7/5.5kwThree axis feedX, Y axis rapid feed30/30mm/minZ axis rapid feed24mm/mintriaxial cutting feed1-5000mm/minX, Y axis motor power1.2/1.2kwZ axis motor power1.2kwControllerOptionalGSK218M/SYNTECPressure ≥20.3/ cubic metresAccuracypositioning accuracy±0.008mmrepeat positioning accuracy±0.004mmWeight SizeMachine weight2800/2600kgOutline dimension(L*W*H)2115*1800*1770mm   Our Company   Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger. Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence. Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents. Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise. Packing & DeliveryPacking Details : International Heat T
