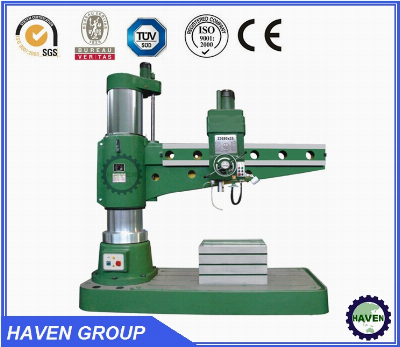

Radial Drilling Machine Z3080X25Main features:Gather mechanical-electrical-hydraulic functions, use extensively. With wide range of speed and feed, with manual,power and fine feeds. The feed of machines are very easily engaged and disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power, cmle is sensitna owet nelile.Main specification:ItemunitZ3080x25Z3063x20AZ3050x16/1Max. Drilling capacitymm806350Spindle axis to column generating linemm500-2500450-2050350-1600Diameter of columnmm550450350Spindle tape MT6MT5MT5Spindle travelmm450400315Spindle speed rangeMm16-125020-160025-2000Spindle speed steps 161616Spindle feed rangeMm/r0.04-3.20.04-3.20.04-3.2Spindle feed steps 161616Max.Distance nose to working surfacemm550-2000400-1600320-1220Dimension of worktableMm1000x800x560950x630x500630x500x500Dimension of basecm353x140x30290x125x25240x100x20Overall Size cm373x140x379311x125x315250x106x265G.W./N.W.kg12000/110008000/70003900/3500Packing dimensioncm415x165x249347x147x235260x112x260Power of Main motorKw7.55.54ItemZ3032x10/1Z3040x10/1Z3032x8/1Z3040x8/1Max. Drilling capacity(mm)32403240Distance Spindle axis to column generating line(mm)300-1000300-1000320-820320-820Diameter of column(mm)240240200200Spindle tape MT4Spindle travel(mm) 280 240Spindle speed range(mm) 32-2500 75-1220Spindle speed steps 16 6Spindle feed range(mm/r) 0.10-1.25Spindle feed steps 8 3Distance nose to working surface 220-1000 120-860 size of worktable(mm) 600x450x450 400x400x350Dimension of base 1710x800x160 1370x700x160Overall Size (cm) 176x80x205 140x72x188Main motor(kw) 2.2 1.5G.W./N.W.(Kg) 2000/1600 1425/1200Packing dimension(cm) 187x97x220 155x77x210/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
