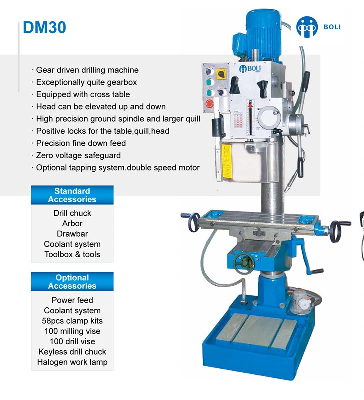

Dm30/Dm50 Drilling and Milling Machine

DM30/DM50 Drilling and Milling Machine >  Gear driven drilling machine >  Exceptionally quite gearbox >  Equipped with cross table >  Head can be elevated up and down >  High precision ground spindle and larger quill >  Positive locks for the table,quill,head >  Precision fine down feed >  Zero voltage safeguard >  Optional tapping system.double speed motor   Standard Accessories >  Drill chuck >  Arbor >  Drawbar >  Coolant system >  Toolbox & tools Optional Accessories >  Power feed >  Coolant system >  58pcs clamp kits >  100 milling vise >  100 drill vise >  Keyless drill chuck >  Halogen work lamp Technical Parameters   Model No.UnitDM30DM50drilling capacitymm40(1.57")iron: 50(1.97") steel: 45(1.77")max distance spindle to tablemm/50-550(1.97"-21.65)spindle strokemm120(4.72")125(4.92")spindle taper MT4MT3 or MT4spindle feedmm/r0.1,0.2,0.30.10/0.18/0.26spindle speed rpm75-3200/12steps/face mill capacity mm/80(3.15")end mill capacity mm/32(1.26")working table size mm540×470(21.26"×18.5")1000×240(29.37"×9.45")working table cross travel mm/300(11.81")working table longitudinal travel mm/600(23.62")T-Slot size mm/14(0.55")head tilt left right ° /90(3.54")base dimension mm650×450(25.59"×17.72")/column mmØ115(4.53")/motor power kw0.85/1.11.1/1.5packing size mm740×720×18301450×1000×2100N.W.kg320430  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
