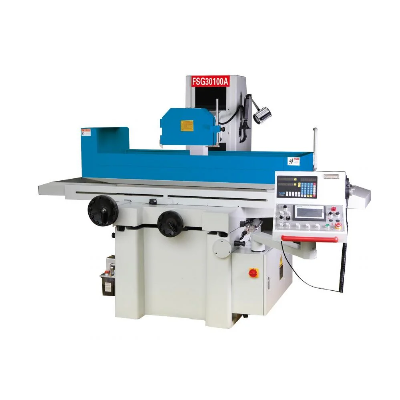

Fsg-30100 Series Auto Surface Grinder, Lathe Machine

  Product DescriptionFeature instroduction of saddle moving surface grinderFSG Series saddle moving grinder, the table size covers 200x500,250x500,300x630,300x1000,400x800,400x1000.Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes corss movement driven by AC motor, work table make reversing movement driven by hydrau, and spindle make elevating movement and is driven by manual(M series), AC motor(R series), or AC servo motor(A series).Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiencyDouble walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guide way, which make the column safe and beautiful.Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.the A series grinder is standard equipped with auto down feed Servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding.The work table is driven by imported hydraulic valve unit, realize smoothly  motion without shockingGuide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracyTable size305x1020mm, three models to select: M, R, A.Product ParametersSpecificationsITEM/MODELFSG-30100MFSG-30100RFSG-30100A Table sizemm305*1020305*1020305*1020 Magnetic chuck sizemm300*1000300*1000300*1000 Max.distance from spindle center to tablemm580580580 Table cross travelmm340340340 Table longitudinal travelmm113011301130 Max. loading capacity(include chuck)kg400400400 Speed of table longitudinal movem/min5~255~255~25 Cross Motion     Intermittent feed ratemm/t0.1~80.1~80.1~8 Rapid speedmm/min990990990 Feed of handwheelmm/div0.020.020.02 Vertical Motion     Auto down feed ratemm/t- 0.005-0.05 Rapid down speedmm/min-650480 Feed of handwheelmm/div0.0050.0050.005 Spindle rotating speedr/min1450 (50HZ)/1750 (60HZ) Grind wheel sizemm 350*40*127  Spindle motor powerkw 4  Floor space (L*W*H)mm 4400*2200*1900  Gross weightkg 3200  Package size (L*W*H)mm 2950*2220*2210 the photo shows includeing optional equipment.Detailed Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
