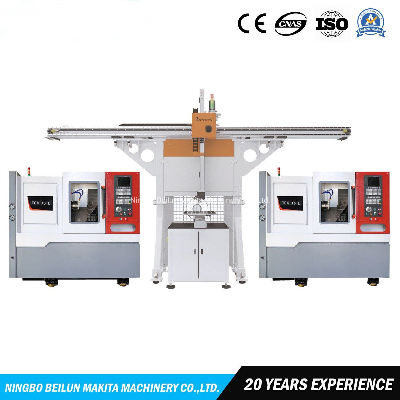

Slant Bed Metal Cutting Linear Rail CNC Lathe with Robot Production Line

Linear Rail Slant Bed Gang Tool Lathe  1. 30deg incline body design,twice aging treatment of whole machine bed structure,high rigidity and precision stability.2. Import precision ball screw and linear guide rail,realize the H level machining.3. High precision spindle unit,hydraulic clamping system to ensure the smooth operation of high-speed spindle.4. Linear gang tools frame structure,good repeatability,high overall efficiency.5. The sapcious interner space,long stroke, upgrading of the range6. Built-in rear automatic chip conveyor structure,transformation of multiple on-line automatic production  line is more reasonable.Product showSpecification    ItemParameterTCK36LCapacity Max.swing over bedΦ400mmMax.swing over slideΦ160mm/Φ230mmMax.workpiece length245mmBar diameterΦ35mm/Φ39mmSpindleMaximum spindle speed5000r/minDia of spindle boreΦ49mmSpindle taperMT5 Rapid traverseX-axis rapid traverse18m/minZ-axis rapid traverse24m/min  Axis strokeX-axis limit travel320mmZ-axis limit travel300mmToolTool post/turretLinear multi station cutterShank size25*25mmOthersMin setting unitX axis:0.001mm Z axis:0.001mmSpindle motor power4KWDimension(L*W*H)1900X1420X1566mmWeight/aprroximate weight2100KGOur CompanyMakita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger. Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence. Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents. Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise. Packing & DeliveryPacking Details : International Heat Treatment Standard Export Wooden Package.                                    workbench and the guide surface rust-proof oil daub, and oil film paper cover. Delivery Details : 15-60 days after PI confirmed and deposite received. Quanlity& Honor Exhibition photosFAQQ: Are you trading company or manufacturer ?A: We are factory. Beilun makita machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.  Q: How long is your delivery time?A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.  Q: What is your terms of payment ?A: Payment=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.  Q: Where is your factory located ? How can I visit there ?A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.     Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
