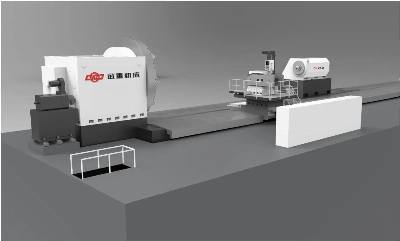

Dl Series CNC Heavy Duty Horizontal Lathe

APPLICATIONDL series CNC horizontal lathes are developed by WZ by introducing the design of the former SCHIESS of Dusseldorf, with hydrostatic bearing type headstock structure series adopt modular design, with advantages of heavy load, high precision, strong structure, wide application and convenient operation.Besides basic performance, they can realize CNC automatic machining for cone and curve surfaces, steps, groove, and thread etc. Equipped with various attachments, it can realize milling, grinding, boring and drilling. They are suitable for industries of energy, transportation, metallurgy, aerospace, aviation and heavy duty machinery, such as machining rotor of steamer, cover band, generator, rotor of water turbine, mechanical shaft, r udder spin die, hoister and barrel of ship.The main performance characteristics:Headstock spindle adopts high accuracy hydrostatic bearing at radial direction with load relief hydrostatic support; high accuracy double row thrust roller bearing at axial direction. Two step mechanic speed change. DC motor drive. Master and slave servo motors could be adopted for milling feeding and indexing;Tailstock adopts self-adapt mechanism of workpiece thermal elongation, load cell and teeth plate thrust device;Lengthwise and crosswise guideway of tool carriage adopts closed type hydrostatic guideway with constant flow. Lengthwise transmission adopts double rack and pinion mechanism for clearance elimination; crosswise transmission adopts double nut clearance elimination mechanism and ballscrew. KENNA heavy cutting toolholder is adopted at front of tool post Standard toolbar or quid change tool bit could be mounted on the toolholder;Optional attachments: Steady rest, milling tool carriage end-face tool carriage for drilling and turning grinding head, deep-hole boring system with large diameter, deep-hole drilling system with small diameter etc.CNC system as per selection: SIEMENS, FUNAC, REXROTH etc.Main technical parameters:Model  Item DL105DL125DL160DL180DL210DL250DL325Max. swing radiusmm1050125016001800210025003250Max. machining dia. over carriagemm1600200025003000360042005600Max. loading capacity between centersT80125~200125~200125~350125~350320~500320~500Spindle torquekN.m95160-200160-200160-350160-350350-450350-450Spindle speedr/min0.5-1250.5-900.5-900.5-710.5-710.5-630.5-63Main motor powerkW99166-200166-200166-225166-225225-284225-284Detailed PhotosWorkshopPackageInstallation and commissioning  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
