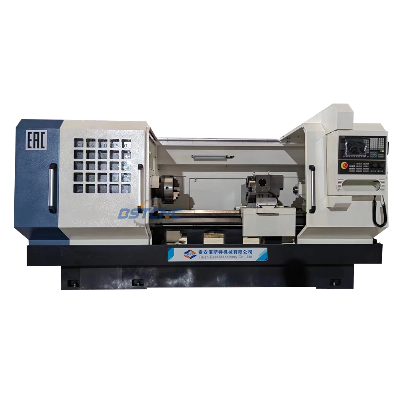

Cdk6150 Horizontal Heavy Duty CNC Metal Turning Milling Drilling Lathe Machine

   Product DescriptionThis series of CNC lathe can adpot various CNC systems to achieve automatic contorl. Widely used, capable of udetaking various turning tasks. Such as turning various parts End faces, innner and outer cylindrical surface,conical surface, spherical sueeface, curved surface, groove, end face, etc, especially suitable for turning various inner and outer pipe threads. It is a device designed, developed and produced specifically for some lightweight large-diameter workpieces, with large spindle holes and high cost-effectiveness, high stability , high rigidity and high accuracy .Standard configuration:                                                              Optional configuration:-GSK980TC3 control system;                                                                        -Siemens808D,Fanuc0i-TF, Syntec22TA.....-3 jaws manual chuck ;                                                                                 -Hydraulic chuck, Pneumatic chuck ;-4 station electric tool post ;                                                                         -6/8/12 station electric tool post or Servo , hydraulic and power turret;          -Manual tailstock;                                                                                          -Hydraulic / Pneumatic tailstock;                                                                                                                        -Chip conveyor ;                                                                                                                         -Single power head and Combined power head;Product ParametersItemUnitCDK6150(φ110)CDK6150(φ140)CDK6150(φ160)Max dia.swing over bedmm500Max dia.swing over cross slidemm270Max.length of work-piecemm1000/1500/2000/3000Width of bedmm400Spindle boremm110140160Power of spindle motorKw7.5Mode of spindle speed Three step variable speedRange of spindle speedr/minI70-280    II120-430    III210-800Max.traverse of X/ZmmX:310Z:800/1300/1800/2800 X/Z rapid traversemm/min4000TailstockTravelmm150Taper Morse NO.5Electric tool-postStations Vertical four-stationDimensionmm32 × 32Tool change timeS2.6Positioning accuracymmX:0.020/Z:0.03Repositioning accuracymmX:0.012/Z:0.016Overall dimensions(L*W*H)mm2700 × 1500 × 1700Machine weightT2.52.7      2.9Detailed PhotosCompany Profile Cooperation Customers Packaging & Shipping FAQ /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
