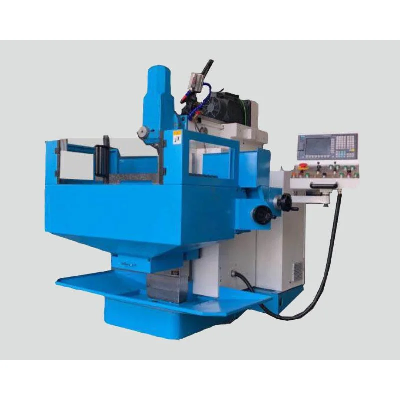

CNC Universal Tool Milling Machine Manually.

Product DescriptionApplication of machine:CNC universal tool milling machine manually using "SIEME NS808D" numerical control system,manual mode and numerical control mode switch can be used according to demand,the machine also has the general universal tool milling machine and the function of CNC universal tool milling machine.Features:1, 3-axis simultaneous,4-axis control.2, NC rotary table can be equipped with,if order.3, NC controls spindle stepless change..4, Four way independent electronic hand wheel,easily to be operated.5, With protection cover on cutting zone of working table,ensur safe and clean.6, Auto tool change with hydraulic clamping unit,quick,easy and lownoise.7, Sticking plastic guide rail coordinates with superaudio guide rail.high accuracy.8, Accurate transmission drived by three way ball screw,lower noise.9, With different kinds of accessories,it can enlarge the range of application, enhance working efficiency.Product Parameters           Mainspecifications                                                                                         XKF8130                      XKF8140 Range of spindle speed0-3200rpm0-3200rpm Power of main motor3.5KW5.5KW Table size(LxW)750x300mm800x400mm Travelsoftablellongitudinalytransverseyvertical)dvgdrlleAVCICCd360x250x400mm500x350x400mm T-slots( number x width)5x14H77x14H7 Max.loading of worktable150kg300kg Taper hole of spindleISO40ISO40 Quill travel60mm80mm Inclining to left and right of axis of spindle head±90°±90° Range of feed speed10-3000mm/min10-3000mm/min Rapid travel4000mm/min4000mm/min Resolution0.001mm0.001mm Machine weight1500kg2000kg Packing dimension(Lx W x H)270x191x228cm290x215x232cmThe following special accessories are available if ordered:1,Univereal table2,Rotary table3,Parallel vice4,Dividing head5,Slotting head  Company ProfileWho We Are?Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.What Do We Can Do?The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.Our Aim:Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
