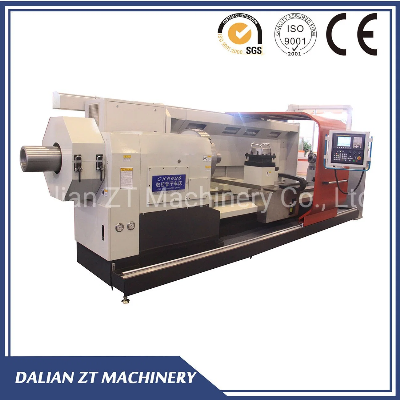

Large Spindle Bore CNC Oil Country Pipe Threading Lathe CK6628

 This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity,high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used. The realiability is very high.  Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control. Specifications of CNC oil country lathe ItemCK6628CK6636CK6646Swing over bed1000mm1000mm1200mmSwing over carriage710mm640mm800mmSpindle bore280mm360mm460mmMax. Load between centers4T6T6TBed width600mm755mm970mmSpindle speed5-500rpm3.15-315rpm3.15-315rpmSpindle motorAC18.5kWAC22kWAC30kW  FAQ 1. How can I choose the most suitable machines ?A:  You can choose the exact model by yourself.  Or you can tell us your specifications, to let us choose the best model for you, too. You can also send us the product drawing, and we will choose the most suitable machines for you.  . 2. When do you deliver?A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.  3. Is machine tested ?A: The accuracy, noisy will be tested according to China GB standard. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5. What's the Payment Terms ?A : T/T 30% down payment when order ,70% balance payment before shipment ;Irrevocable L/C at sight also acceptable but it will subject additional bank fee. 6. Do you accept cash or L/C?A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account. 7. What's the MOQ?A: 1 set (Only some low cost machines will be more than 1 set) 8. How is the warranty?A: 12 months after shipment date9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.A: Video technical support, online service, we can answer you in 24 hours.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
