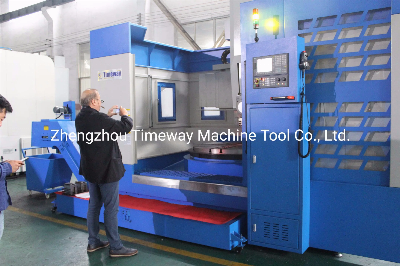

High Quality Heavy Duty CNC Vertical Lathe Machine

Single Column CNC Vertical Turning MachineVLK800E   VLK1250E     VLK1600E     VLK2000E  Product Description * The machine tool is suitable for processing large and thin and heavy irregular workpiece; No the workpiece roundness error due to inertia weight, ensure that the roundness precision of the workpiece. * Due to the weight of workpiece, so workpiece and fixture can ensure that closed, short workpiece loading and unloading time and stability; * The column,beam, and ram guideway adopt grinding after quenching, have super wear resistance and prolong the service life; Unique whole enclosed shield prevent scraps and coolant splash, achieve environmental protection purposes.   Structure and Feature:Column:1. The column adopts the optimization design of box-type structure and reasonable layout stiffener, so as to realize the good thermal stability, high strength and high rigidity. 2. The column guideway adopts grinding after quenching, to improve wear resistance and prolong service life. The guideways adopt stainless steel sealing cover for protection and reduce the corrosion rate. Worktable :1. The worktable base adopts high strength and high rigid cast iron material, to improve stability and absorb vibration. Unique thermal symmetric structure, overcome the spindle temperature rise effect on machining accuracy. 2. The spindle is equipped with spindle encoder, to realize constant linear speed cutting 3. Worktable and worktable base and motor separation, relying on the V-type belt drive, max. limit reduces the vibration of the motor heat directly affect the machining accuracy. Beam :1. The beam guideway has very high wear resistance after quenching and grinding, so as to guaratee long-term stability and high processing accuracy. 2. Horizontal guideway width large with wide guide structure, ball screw in the middle of the guide rail thoroughly solve the problem of drive torque, the guideway adopts the paster guide rail, good seismic performance, large loading capacity, decrease friction coefficient. 3. Beam lifting adopts two clamping points, to ensure the accuracy of the lifting beam. Spindle Unit: Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.   Product Parameters SpecificationUnitVLK800EVLK1250EVLK1600EVLK2000ECapacity Max. turning diametermm950125016002000Max. cutting diametermm800125016002000Max. height of workpiecemm800100010001250Max. weight of workpiecekg20005000800012000Worktable Main motor powerkw22223037Worktable diametermm800101014001800Max. torque of worktable KN.m1017.52532Worktable speed range rpm2-3201.25-2001-1604-125ToolNumber of tool station pcs.4444Tool shank section of external turning toolmm32*4032*4032*4032*40Dirve type  ElectricElectricElectricElectricX/Z-axis X-axis ball screw size(dia.*screw pitch)mm50*1050*1050*1050*10Z-axis ball screw size(dia.*screw pitch)mm50*1050*1050*1050*10Max. travel(X/Z)mm-20-550/650-20-800/650-20-1030/800-20-1150/800Feed range(X/Z)mm0.1-5000.1-5000.1-5000.1-500Rapid feed speedmm/min2000200020002000OthersCNC system  SIEMENS 808DSIEMENS 808DSIEMENS 808DSIEMENS 808DServo motor torque(X/Z)N.m10101010Power capacityKva30374552Machine net weight kg8500110001450018500Machine dimension(L*W*H)mm4300*2380*42904780*2570*44005630*3010*46605800*3685*4940AccessoriesStandard Configuration:Automatic lubrication systemFull eclosed shieldElectrical cabinet with air conditionPrecise oil coolerSIEMENS 808DAutomatic chip removal(side removal) Optional Configuration:SIEMENS 828D CNC system FANUC 0i-mate TD CNC system Special fixture /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
