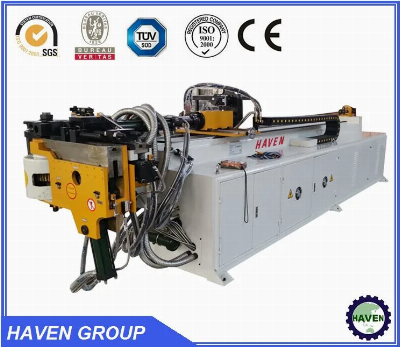

Single Head Hydraulic Pipe Bending Machine

                                          Single Head Hydraulic Pipe Bending MachineMain Characters:1. Operate by NC control unit, imported electric and hydraulic elements. 2. English showing and conversational operation. 3. It can adjust speed in each bend and the bending precision is high 4. 16 groups of bending information can be stored. Multiple angles can be finished once. 5. The foot switches with functions of automatic start, emergency stop and resuming. The safety is high. 6. Delicate design of the bending head makes the bending space large. 7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others. Main Specification:The  Minimum  bending  diameter  based  on the  pipe  diameter The  Max  bending  diameter  can  according to  the  customer' s  requirement The  Max  length  of  mandrel  can  according to  customer' s  requirement ModelUnitDW38NCMax  bending  capability(OD)mmΦ 38× 2Max  bending  radiusmmR260Min  bending  radius mmAccording  to  the  pipe  diameterMax  bending  angleDegree190Max  effective  distance  of  mandrel mm1600Control  System NC  ControlMax  elbow  bend  pipeUnit16Max  storable  sectionsUnit16× 16Motor  power KW4Max.   Hydraulic  PressureMpa12Hydraulic  System  Control Electromagnetic  ValveOil  Tank  Capacity L110Measurement mm3300×800×1430Weight  of  MachineKg1000ModelUnitDW50NCMax  bending  capability(OD)mmΦ 50× 3Max  bending  radiusmmR350Min  bending  radius mmAccording  to  the  pipe  diameterMax  bending  angleDegree190Max  effective  distance  of  mandrel mm2200Control  System NC  ControlMax  elbow  bend  pipeUnit16Max  storable  sectionsUnit16× 16Motor  power KW5.5Max.   Hydraulic  PressureMpa12Hydraulic  System  Control Electromagnetic  ValveOil  Tank  Capacity L150Measurement mm3100×1000×1250Weight  of  MachineKg1220ModelUnitDW63NCMax  bending  capability(OD)mmΦ 63× 4Max  bending  radiusmmR350Min  bending  radius mmAccording  to  the  pipe  diameterMax  bending  angleDegree190Max  effective  distance  of  mandrel mm2600Control  System NC  ControlMax  elbow  bend  pipeUnit16Max  storable  sectionsUnit16× 16Motor  power KW5.5Hydraulic  System  Control Electromagnetic  ValveOil  Tank  Capacity L220Measurement mm3500×750×1100Weight  of  MachineKg1500ModelUnitDW75NCMax  bending  capability(OD)mmΦ 75× 4Max  bending  radiusmmR400Min  bending  radius mmAccording  to  the  pipe  diameterMax  bending  angleDegree190Max  effective  distance  of  mandrel mm2800Control  System NC  ControlMax  elbow  bend  pipeUnit16Max  storable  sectionsUnit16× 16Motor  power KW7.5Max.   Hydraulic  PressureMpa12Hydraulic  System  Control Electromagnetic  ValveOil  Tank  Capacity L250Measurement mm4000×1000×1100Weight  of  MachineKg2000ModelUnitDW89NCMax  bending  capability(OD)mmΦ 89× 8Max  bending  radiusmmR450Min  bending  radius mmAccording  to  the  pipe  diameterMax  bending  angleDegree190Max  effective  distance  of  mandrel mm3500Control  System NC  ControlMax  elbow  bend  pipeUnit16Max  storable  sectionsUnit16× 16Motor  power KW11Max.   Hydraulic  PressureMpa14Hydraulic  System  Control Electromagnetic  ValveOil  Tank  Capacity L260Measurement mm4550×1300×1300Weight  of  MachineKg3500ModelUnitDW110NCMax  bending  capability(OD)mmΦ 110× 8Max  bending  radiusmmR500Min  bending  radius mmAccording  to  the  pipe  diameterMax  bending  angleDegree190Max  effective  distance  of  mandrel mm3700Control  System NC  ControlMax  elbow  bend  pipeUnit16Max  storable  sectionsUnit16× 16Motor  power KW15Max.   Hydraulic  PressureMpa14Hydraulic  System  Control Electromagnetic  ValveOil  Tank  Capacity L320Measurement mm5000x1600x1200Weight  of  MachineKg4500ModelUnitDW115NCMax  bending  capability(OD)mmΦ 115X8Max  bending  radiusmmR520Min  bending  radius mmAccording  to  the  pipe  diameterMax  bending  angleDegree190Max  effective  distance  of  mandrel mm4500Control  System NC  ControlMax  elbow  bend  pipeUnit16Max  storable  sectionsUnit16× 16Motor  power KW22Max.   Hydraulic  PressureMpa14Hydraulic  System  Control Electromagnetic  ValveOil  Tank  Capacity L350Measurement mm5600X1600X1200Weight  of  MachineKg7000Machine photos:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
