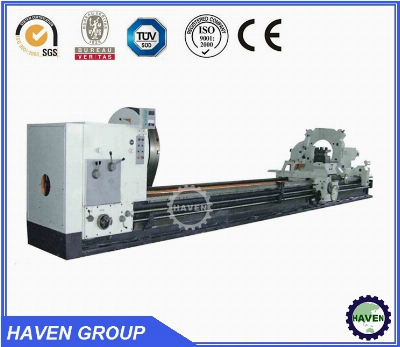

Conventional Heavy Duty Lathe Machine

                                                   Conventional Heavy Duty Lathe MachineMain features:1) These lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads.2) The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed.3) Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity.4) The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.Main specification:SPECIFICATIONModelCW61125HCW61140HCW61160HCW61180HCW61200HMax.swing diameter over bed1240mm1440mm1640mm1840mm2040mmMax.swing diameter over carriage900mm1050mm1250mm14501650mmWidth of bed1100mmMax.length of workpiece1000 -12000mmThe bed saddle longitudinal maximum sroke1000 -12000mmMax. workpiece weight15T (20T with help of support roller )Spindle noseA15Sindle bore diameter130mmTaper of spindle boreMetric No.140Range of spindle speed3.15-315r/min 21kinds 3.5-290r/min 12kindsSpindle front bearing inner diameter200mm220mmLongitudinal feeds range0.1-12r/min 56 kindsTransversal feeds range0.05-6mm/r 56kindsMetric thread range1-120mm 44kindsInch thread range3/8-28TPI 31kindsModule threads range0.5-60mm 45kindsPitch threads range1-56TPI 25kindsTaper of Tailstock sleeveMetric No.80Traver of tailstock sleeve300mmDiameter of tailstock sleeve260mmMain motor power30kWRapid motor power1.5kWCoolant pump power0.125kW/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
