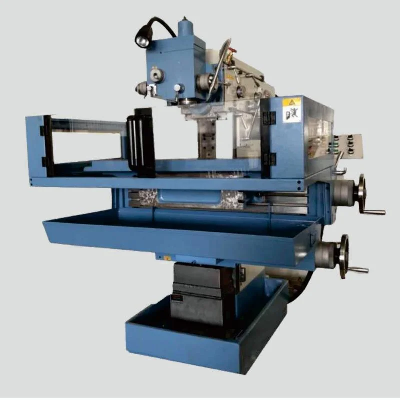

Universal Tool Milling Machine, Machine Tool

Product DescriptionApplication of machine:This machine is designed to be a Universal Tool Milling Machine,can perform procedures such as milling,boring, drilling,and slotting,etc.,and is suitable for machining cutter, Fixture,die and mould,and other components with complex Figuration.With the aid of various special attachments.it can Machine all kinds of components such as spiral src,gear,rack Spline,and so onFeatures:1, Original structure,broad versatility,high accuracy,easy to operate.2, With various attachments to extend range of application and raise utilization.3, Model XS8140Awith programmable digital display system resolving power is uo to 0.01mm.4, With protection cover on cutting zone of working table,ensur safe and clean.Product Parameters           Mainspecifications                                                              X8140A  XS8140A  Working tableHorizongtal working table(W×L)800×400mm Vertical working table(W×L)950×250mm Longitudinal/Transeerse/Vertical Travel500/350/400   Universal tableHorizongtal swivel±360° Inclination to front and rear±30° Inclination to front and right±30°  Verticalspindle headVertical travel of quill60mm Axia inclination on left and right±90°   HorizongtalSpindleTaper holeISO40 The height from axis to ground1330mm Min,distance between axia and surface of horizontal table35mm   VerticalspindleTaper holeISO40 Min,distance between nose and surface of horizontal table5mm Horizontal and vertical spindle speed :steps/range18steps()40-2000rpm Longitudinal,transeerse and vertical feeds:steps/range18steps()10-500min Axial feed of quill of vertical spindle ; steps/range3steps()/0.03-0.12mm/rev Power of main motor/Feed motor3kw/1.5kw Max.table load/MAX.load of cutter300kg Overalldimensions(LxWxH)/Netweight182×164×171cm/1750kg Packing dimensions fou export/Gross weight212×182×220cm/2100kgThe following special accessories are available if ordered:1,Univereal table2,Rotary table3,Parallel vice4,Dividing head5. Slotting headCompany ProfileWho We Are?Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.What Do We Can Do?The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.Our Aim:Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
