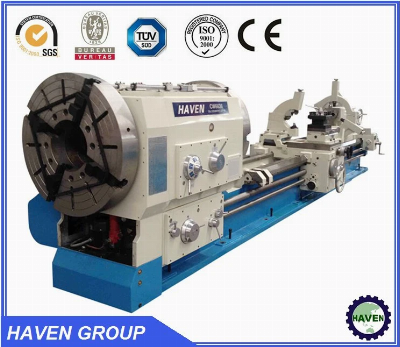

Oil Country Lathe Pipe Threading Lathe

                                        Oil Country Lathe Pipe Threading LatheMain specification:ModelCW6628CW6636CW6646Max swing over bed1000mm1000mm1200mmMax swing over carriage640mm640mm900mmDistance between center1500-16000mmWidth of bed600mm755mm970mmDia of spindle inner hole280mm360mm460mmMin clampe dia of chuck50mm200mm250mmRange of spindle speed5 to 500r.p.m3.15 to 315 r.p.m.Kind of metric thread and pitch range56 kinds  1 to 120 mmKind of Whitworth thread and range37 kinds30 to 1.125 teeth/in.Kind of modular thread and range46 kinds  0.5 to 60 mmKind of radial thread and range46kinds  0.5 to 60 D.P.Tool section ( H×W )32X32mm45×45 mm45×45 mmMax. travel of tool post200 mm200 mm200 mmMax. travel of cross slide600mm520 mm620Diameter of tailstock sleeve120mm160 mm160mmTravel of tailstock sleeve250mm300 mm300 mmTaper for taper hole of tailstock sleeveMorse No.6Metric No. 80Metric No. 80Machining length of taper scaleTaper turning, ±1:4Main motorAC18.5KWAC22KWAC30KWMachine photos:Lathe in user's workshop:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
