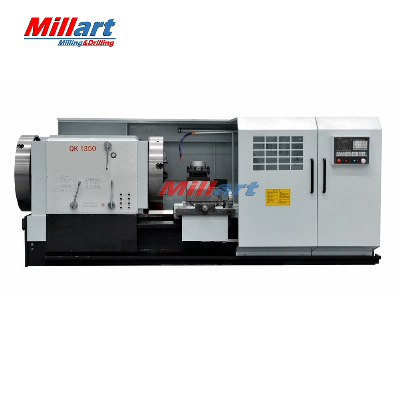

Large Diameter Pipe Threading Lathe Qk1350 Horizontal CNC Oil Country LatheFeature:CNC Pipe Threading Lathe Machine tool is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.Big spindle bore and double chuck allows clamp and process big diameter pipes;Integral machine bed adopts high strength iron to realize high rigidity and precision;Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.Technical parameter:ModelUnitQK1350Max dia.swing over bedmm1250Max dia.swing over cross slidemm850Max.length of work-piecemm1500Width of bedmm755Spindle boremm540Power of spindle motorKw22Mode of spindle speed Two gears, smooth adjustmentRange of spindle speedr/minLow:15-80High:50-200Max.traverse of X/ZmmX:550 Z:1250X/Z rapid traversemm/min4000X-axis motorSpeedr/min1500TorqueN.m18PowerKw2.8Speedr/min1500Z-axis motorTorqueN.m22PowerKw3.5Tailstock quillDiametermm140Travelmm300Taper Morse NO.6Electric tool-postModel SLD170A04NNo.of tool stations Vertical four-stationDimensionmm40x40Turret indexing timeS5.6Chuck K66-1000 four jaw electric chuckPositioning accuracymm0.020Repositioning accuracymm0.01Overall dimensions(L*W*H)mm5000×2200×2200Machine weightT15Standard accessories:Fanuc 0i TF controller4 position NC turretCoolant systemLubricating systemWork lampSemi closed coverManual tail stockDouble chucksRear support bracketsPad ironUser manualOperate toolsOptional accessories:CNC system Siemens, GSK etcServo turret, Hydraulic turret, 6 position turretChip conveyorFull closed coverHydraulic tail stockSteady restFollow restGrinding attachmentCompany information:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
