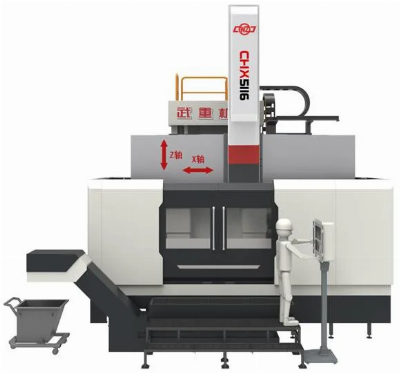

Ckx51/Chx51 CNC Single Column Vertical Milling and Turning Lathe

  Product DescriptionAPPLICATIONSuitable for materials such as various casting irons, steel and alloy, non-ferrous metal, non-metal material, etc. It can carry out turning to inner/exterior cylinder, inner/exterior cone, plane, slot/groove, thread and various rotary curved shaped parts.Function attachments as per requirement: disc type ATC, in-machine tool setting device, job measuring probe, electric spindle grinding head, etc.The main performance characteristics:Main fundamental parts adopt high quality casting iron, with thermal symmetrical structure to improve thermal stability.Table adopts high accuracy double row roller bearing in radial for centering; large size ball thrust bearing is adopted in axial for supporting;Main drive adopts 2-step mechanic speed change planet gear transmission structure, driven by wide field magnet DC motor or AC spindle motor.Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow.Machine adopts full closed enclosure protection; crossrail guide way adopts stainless steel protection cover.X/Z can adopt optical scale for full closed loop inspection; in table center encoder is adopted for constant speed cutting and thread turning.Product ParametersItemUnitModelCKX5116 CHX5116CKX5125CHX5125Max turning diametermmΦ1600Φ2500Max turning heightmm16002000Table diametermmΦ1400Φ2250Table loading capacityt816Highest table turning speedr/min315200Highest table milling speedr/min3.22Max table torquekN.m2032Ram section sizemm250250Max ram travelmm15001500Milling spindle powerkW13.5/2513.5/25Milling spindle max torqueN.m400/750400/750Milling spindle highest speed up tor/min2000/25002000/2500Turning main motor powerkW5555Detailed PhotosWorkshopPackageInstallation and commissioning  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
