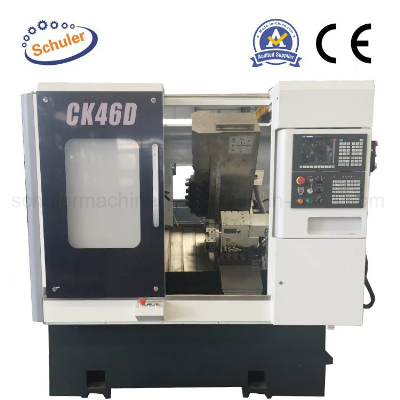

Precision Milling Compound Function Inclined Bed CNC Lathe (CK46D)

Precision Milling Compound Function Inclined Bed CNC Lathe(CK46D)Features:1,Slant bed CNC lathe linear rolling guide meets high speed and high efficiency requirements, reduce frictional resistance and temperature rise deformation, improve machining accuracy, and ensure long-term stability of cutting precision.2. The tool detection device can automatically input the tool nose position data into the numerical control system, which greatly reduces the adjustment time during tool change and automatically compensates for the wear of the tool tip.3. The slant bed CNC lathe adopts the domestic or imported high-rigidity horizontal turret tool holder with high positioning accuracy and small re-cutting deformation. 4.The standard configuration: spindle stepless speed regulation, hydraulic chuck, hydraulic tailstock, horizontal eight-station tool holder, closed protection.5.The inclined bed CNC lathe adopts the overall inclined bed structure, and can maintain the stability of the precision of the CNC machine tool when re-cutting.6. X, Z-axis servo motor through the elastic coupling directly connected with the precision ball screw, high precision, fixed at both ends of the screw, improve the support stiffness of the support, so that frequent high-speed positioning, re-cutting caused by the wire Bar distortion is minimized.7. High precision, high rigidity programmable tailstock.8. The slant bed CNC lathe has adopted corresponding measures to reduce the thermal deformation of the spindle during the design, so that the spindle can maintain the relative stability of the spindle axis during long-term operation.9.Slant bed CNC lathe adopts full rail protection, cooling box and chip conveyor are separated from the main machine to ensure the accuracy of CNC machine tools from thermal cutting.Technical Parameters and Details  Brand Image:As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.   SpecificationsUnitsCK46DMax.swing over bedmm450Max. Swing over cross slidemm130Max. Processing lengthmm450Cross slide lengthmm780Lathe bed straucture 30° integral inclined latheDistance between cross slide and spindle axismm80Spindle nose A2-5Spindle (C axis )speed rangeR/min50-4500Spindle boremm56mmBar capacitymm45mmSpindle (C Axis)motorkw7.5Milling head (side)4 (nose)4Milling head powerkw2.3Milling head speedR/min3000Distance of each milling headmm60X axis travelmm500Z axis travelmm450Y axis travelmm240Turret type 8 station hydraulic turret,4+4 milling headX rapid traverseMm/min24000Z rapid traverseMm/min24000Y rapid traverseMm/min15000X/Z axis positioning accuracymm0.006X/Z axis repositioning accuracymm0.003Spindle (C axis)dividing positioning accuracymm0.02''(70 arc-seond)Spindle (C axis)dividing repositioning accuracymm0.006''(20 arc-seond)Machine dimension(LxWxH)mm2500x1800x1800Net weightKg3000Agents Wanted:We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.Delivery:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. Payment:We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)If any questions pls feel free to contact meTel +8618663288651 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
