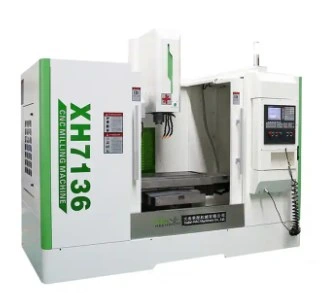

Chinese CNC Vertical Machining Center CNC Machine Milling Xh7136

chinese cnc vertical machining center cnc machine milling XH713Standard configuration: 1.The CNC system: KND,GSK,Fanuc and etc.2.The knife: The famous Taiwan tools changer3.The weight: Wuxi Xieqing nitrogen balance4.The high quality castings: Resin sand casting5.The spindle: Taiwan famous high speed spindle6.The Internal protection: Total or half protectionSelect the configuration:1.M70B/M70A Mitsubishi FANUC 0i mate MD2.The CNC dividing head3.The taiwan famous brand manipulator knife storehouse4.NC rotary table5.The chip cleaner6.The fourth axisThe main performance characteristics:1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool forlong-term use.2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration ofmachine on heavy cutting3.The pretension precision ball screw drive4.The high speed, high precision, high rigidity spindle unit5.The design of oil-water separation6.The intermittent automatic lubrication7.Automatic scraping knife systemApplication:The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used inaerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,oil, electronics and other industries.Product main technical specifications: Model XK7136 (GSK25i system) XK7145 (GSK25i system) Travel parameters of 3 axis     X / Y / Z axis travel 900/ 400 / 500mm 650 / 450 / 500mm X/Y/Z Motor Torque 11/11/15N.m 11/11/15N.m Spindle face to table distance 100-600mm 12-620mm Distance from spindle axis to column surface 460mm 500mm Worktable parameters     Worktable size 1250×360 mm 900×400mm Maximum load bearing of worktable 450kg 400kg T Shot 3-18x80mm 3-18×110mm Feeding parameters     X/Y/Z axis rapid movement rate 10/10/10 m/min 20/20/18 m/min Feed moving velocity X, Y, Z 1-6m/min 1-10m/min Spindle parameters     Main shaft connection Belt Belt Spindle taper BT40-120 BT40-120 Range of spindle speed 8000rpm(Optional:10000 ) 8000rpm(Optional:10000 ) Spindle motor power 5.5KW (Optional:7.5KW ) 5.5KW (Optional:7.5KW ) ATC paremeters     ATC capacity 16qty 16qty Maximum tool size Φ80mm Φ80mm Maximum tool weight 7kg 7kg Precision     PositionaI accuracy(JIS standard) ±0.04 ±0.008/300mm Repeated positioning accuracy(JIS standard) ±0.02 ±0.005mm Shape and weight     Machine size 3300×2280×2550 mm 2300×2200×2400mm Weight 3800kg 3800kg /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
