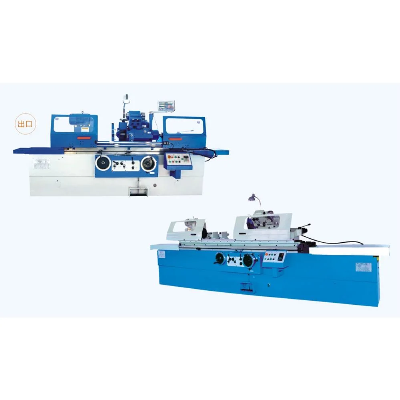

M1432b Universal Cylindrical Grinding Machine

Product Description· M1432B Universal Cylindrical Grinder is an improved design of itspredecessor, M131W and M1432A, with full retainment of their noteworthy merits.It is operated by hand and can be controlled and actuated either by power or byhydraulic system.·In comparison the machine is superior to M1432A in the following field: Greaterrigidity and resistance to temperature change deformation of the machine body;lagerdiameter for the grinding wheel spindle; Two sets of bearing consisting of four-shoesused as wheel spindle bearings.more power of the grinding wheel and use of smallorifice lubricant restrictor for better table lubrication. All these improvements resultin higher efficiency and better finish in grinding performance.·Machine table longitudinal travel, wheelhead rapid approach and withdrawal andautomatic periodic cross infeed are driven hydro-electrically by pushing buttonoperation. The machine also has the following functions: hand-operated worktableand wheelhead manually traverse infeed plus hydraulic tailstock quill retraction byfoot.·The headstock can be swiveled in counter-clockwise direction in 90 degree range. Byswiveling the headstock, or wheelhead or table, components with different external orinternal taper can be ground. By turning down the internal grinding attachment,internal surface of components can be provided for grinding selection. The chuckmounted using short axis.Workpiece, external and internal grinding wheels, hydraulic and coolant pumps areall driven separately by individual motors.·All the power moving portions of the machine are interlocked by electro hydraulicmechanism to ensure safety in operation. External and internal grinding wheels areguarded in sound and strong covers. Product Parameters  Descriptionunit M1432Bx1000 M1432Bx1500 M1432Bx2000 M1432Bx3000Grinding length(O.D/I.D) mm1000/1251500/1252000/1253000/125Grinding dia. (O.D/I.D) mm φ8~φ320/φ30~φ100Center height mm180180180180Max. workpiece weightkg150 150150150Worktable speed m/min0.1~40.1~40.1~40.1~4Wheel peripheral velocitym/s38383838Max.travel of table mm 1100160021003100Swivel range of worktable -3~+7°-3~+6°-2~+5°-2~+3°External wheel size mmφ400×50×φ203φ500×50×φ203Spindle speed of headstock r/min50HZ:25~220       60HZ:30~264Workhead and tailstock centermorse N0.4N0.4N0.4N0.4Wheelhead displacement per div.ofhandwheel coarse/fine mm0.01/0.00250.01/0.00250.01/0.00250.01/0.0025Total motor powerkw9999Overall dimensions(L×W×H)mm 3605×1810×15154605×1810×15155605×1810×15157605×1810×1515Machine weightkg 3700430066008600  Detailed Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
