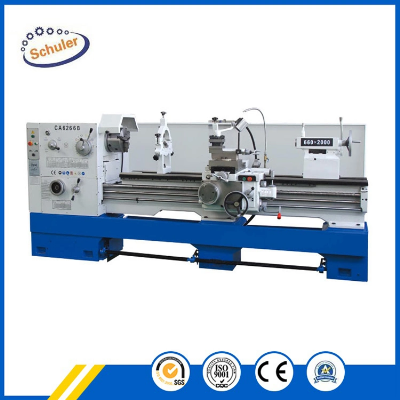

Universal Horizontal Precision Gap Bed Metal Lathe ( CA6166 CA6266)Product Picture:Product Features :1. Machine headstock and bed. Tail seat. Manually scrape the tray between the joints. The machine has been rigorously tested to ensure the accuracy and stability of the machine.2. The machine tool uses high-strength cast iron and adds special materials such as copper and chrome. The bed rail width is 400mm and the bed rail quenching depth is 4mm, which effectively improves the wear resistance and stability of the machine tool.3, head bed box lubrication using cycloidal pump for cyclic forced lubrication. It protects the headboard from the clean and heat-dissipating properties of the hot southern weather, effectively extending the life of bearings and gears.4. The machine tool spindle adopts Wafangdian bearing, the spindle through hole is φ52mm, and the machine tool gear adopts precision grinding, which effectively improves the gear hardness and reduces the machine noise.5. The machine tool adopts domestic brand screws, and the silk mother adopts high-quality bronze alloy to ensure wear resistance and precise maintenance.6. The machine tool adopts four-station high-strength tool holder. The tool holder size is 25x25mm.Application:1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good..4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability. Metal Lathe Technical Parameters:SpecificationsCA6166 CA6266Max. Swing over bed660mmMax. Swing over carriage400mmMax. swing in gap--880mmEffective gap length--210mmMax. length of work piece750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mmWidth of bed400mmSection of turning tool25x25mmSpindleSpindle speeds10-1400rpm/16-1400rpm(24steps)Hole through spindle52mm. (B:80mm). [C:105mm]Spindle taperNO.6(MT6)(B:Φ90 1:20)[C:Φ113 1:20]FeedNumber of feeds64(kinds)(for each)Range of metric threads(kinds)(1-192mm)44kindsRange of inch threads(kinds)(2-24tpi)21kindsRange of module threads(kinds)0.25-48(Moduie39kinds)Range of pitch threads(kinds)1-96DP(37kinds)TailstockMax. tail stock spindle travel150mmTail stock spindle diameter75mmTaper of tailstock spindle center holeNO.5(MT5)Main motor7.5KW(10HP) Packing dimensions (L*W*Hmm)Overall dimensions for750mm2550x1140x1750Overall dimensions for1000mm2700x1140x1750Overall dimensions for1500mm3200x1140x1750Overall dimensions for2000mm3700x1140x1750Overall dimensions for2200mm4030x1140x1750Overall dimensions for3000mm4850x1140x1750Overall dimensions for4000mm5800x1140x1750Weight (kg)LengthG.W N.W.Weight for 750mm2380 2260Weight for 1000mm2570 2450Weight for 1500mm2810 2640Weight for 2000mm3050 2880Weight for 2200mm3390 3180Weight for 3000mm3930 3687Weight for 4000mm4580 4200Brand Image:As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.Metal Lathe Details Picture:Turning Lathe package Delivery:---->We can guarantee on-time delivery---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.---->Export case: wooden box with Tito, two, fumigation wooden box.---->Mode of transport: transported by sea or rail to the customer's location.Our Company :Shandong Schuler CNC Machinery Co., Ltd. is a professional manufacturer of vertical machining center, high speed machining center, gantry machining center, vertical milling machine, universal milling machine, turret milling machine, lathe, CNC lathe, radial rocker drill, metal band sawing machine. enterprise. The company is located in Tengzhou City, Shandong Province, with convenient transportation and industrial intensive. The company integrates research, development, design, manufacturing, sales, installation and maintenance of CNC machine tools. With high-level production equipment technology and excellent, high-quality staff, providing high-quality product quality and service, the products sell well in domestic and foreign markets. Zhongzheng is a person, an
