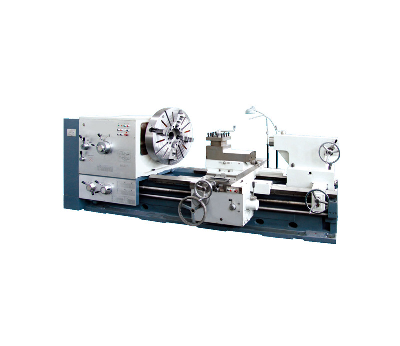

Cwa61160 Universal Metal Lathe for Heavy Duty Cutting

Lathe machine is mateched with Fanuc, Sigmens or Guangzhou CNC system, with programmable controller (PC) and CRT display, linear and circular interpolation. The vertical and horizontal feed adopts AC servo motor and pulse encoder feedback. The width of bed guide rail is 600mm. The whole bed guide rail adopts high strength cast iron ultrasonic frequency quenching.1. The bed saddle guide rail is close to the view, and the friction coefficient is small.2. The main shaft can adopt frequency conversion stepless speed regulation and three support main shaft structure with good rigidity.3. Wide cutting range, can process the outer circle and inner hole. End face, cutting groove, conical surface, chamfering, conical or cylindrical thread and arc surface.4. Suited for cutting workpleces which have various shapes and sizes.5. High machining precision and stable machining quality.MODELCWA61160Max weight of workpiece8TMax.swing over bed1600mmMax.swing over cross slide1200mmDistance between centers1.5m,2m,3m,4m,5m,6m,8m,10m,12mWidth of bed780mmHEAD STOCK Spindle holeΦ130mmSpindle taper140#(Metric system)Spindle speeds3.15-315r/min or 2.5-250r/min GEAR BOX-THREADS&FEEDS Metric threads range(pitch)1-120mmInch threads range(inch)1/4-24Moudle theads range0.5-60mmDiametral threads range1/2-56DPLongitudinal feeds range0.1-12mmCross feed range0.05-6mmRapid feed:long/cross3400mm/min,1700mm/minTOOL-POST Distance between Center&Tool48mmTool section45x45mmCARRIAGE Cross slide travel650mmCompound rest travel280mmTAILSTOCK Sleeve diameterΦ160mmSleeve taper80#(Metric)Sleeve travel300mmMOTOR Main drive motor22kwCoolant pump motor0.15kwRapid feed motor1.5kwNet weight(kg)12400kgDimention(L*W*H)7100*1900*2400Center distance4000mm      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
