Universal Heavy Duty Turning Torno 22kw Conventional Metal Lathe Dle800

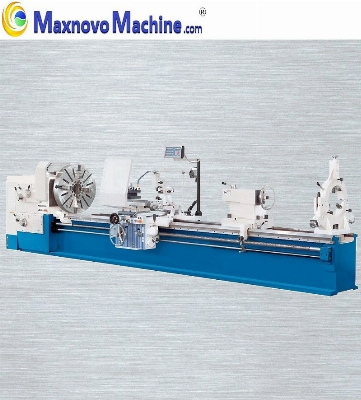

MM-DLE800 - Universal Heavy Duty Tornos Lathe - MAXNOVO MACHINE    This kind of MM-DLE800 series is high precision Universal Heavy-duty Metal Engine Lathe which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such heavy-duty lathe has larger machine bed width 780 mm, big spindle bore 130 mm diameter, Max. Swing Over Bed 1600 mm, and center widths up to 16000 mm.   Product Description Universal Heavy-duty Engine Lathe which has Larger Machine Bed, Big spindle bore, large turning diameter and maximum stability and high accuracy for roughing and finishing operationsMain  Feature :  Convincing Arguments: Quality, Efficiency and Price    -Larger Rigid Machine Bed Width 780 mm -Max. Swing over bed Ø 1600 mm -Max. Weight of work-piece 8000 KGS-Extra heavy, wide machine bed with heavy ribbing construction -22KW Powerful motor ensures high cutting power -Rapid feed structure available on apron -Clutch in headstock guarantee machine start smoothly and brake quickly -Induction hardened and ground guide-ways -Large spindle bore (Ø 130 mm diameter) -Very quiet operating at maximum spindle speed -Large spindle bearings -The complete spindle system in rigid and high accuracy-Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum -The auxiliary gearbox features a wide spectrum of diametric, inch, module threads-Rapid feed for X and Z axis allow quick support positioning and less down-time -Sturdy multi-disk clutch for headstock drive -More accuracy and Lower error rate -Overload clutch enclosed in apron -3-axis digital position indicator is optional -Certificate of Original (CO, FORM A, FORM E, FORM F)     Product Parameters Technical  Data :      Product  Name :Universal Heavy Duty Engine Lathe Machine Product  Item :MM-DLE 800 Max. Weight of Work-piece : 8000 KGS Max Swing over Bed :Ø 1600 mm Max. Swing over Gap Bridge : Ø 2000 mm  Max. Swing over Cross Slide :Ø 1230 mmDistance Between Centers : 1500 /2000 /3000 /4000 /5000 /6000 /8000 /10000 /12000 mm Bed Width : 780 mm Swing range of Top Slide : 90 degree  Headstock Spindle  Bore : Ø 130 mm Spindle Taper : Ø 140 mmSpindle  Speed  Range : 3.15-315 RPM    (21 kinds) Tapping  Capacity Pitch-Metric in range of : 1-120 mm           (44 kinds) P itch-Inch in range of : 1/4-24                 (31 kinds) Module Threads Range : 0.5-60 mm          (45 kinds) Diameter Threads Range : 1/2-56 DP            (38 kinds) Longitudinal feed Range : 0.1-12 mm/rev     (56 kinds) Transverse feed Range : 0.05-6 mm/rev     (56 kinds) Rapid Feed X-axis : 1700 mm / min Rapid Feed Z-axis : 3400 mm / min Tailstock Tailstock Taper : Metric 80Tailstock Quill Diameter : Ø 160 mm Tailstock Sleeve Travel : 300 mm Travel of Top slide : 280 mm Travel of Cross slide : 650 mm Drive  Capacity  Main Motor :  22 KW  Rapid Feed Motor : 1.5 KW   Coolant Motor : 150 W Tool Shank Dimensions : 45 X 45 mm Packing Type : Export Type Pallet Packing Gross  Weight :16350 KGS            Packing  Size :6320 X 1950 X 2450 mm    (for MM-DLE 800 X 3000) Standard Accessory :  4-Jaw Chuck, Oil Gun, Center, Main Spindle Center, Spindle Center Sleeve, Tailstock Centre, Tools and Tool box   Our Advantages  Guarantee of Quality  The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.   The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flatand smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations. At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inchand 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity.  At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieceswith strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resourcesand man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completedin a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy.    Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working
