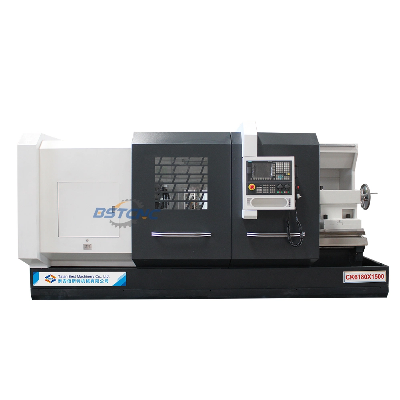

Ck6180 Automatic Matel Turning Lathe Horizontal Bench CNC Milling Machine Lathe

Product DescriptionThis series CNC lathe is an economic machine tool  which capables of rough machining and finish machining with mechanical workpieces. Its main characters such as reliable structure , easy operating,  economical and practical, with comprehensive control system meet the performance needs of many industries. This series lathe is mainy used for the processing of the inner hole, end face, cylindrical surface, conical surface, threading of shafts ,discs and rotational parts. lt is widely used in auto industry industry because of its high efficiency and high precision machining features.  Product Parameters  IitemsUnitCK6180Max dia.swing over bedmm800Max dia.swing over cross slidemm530Max.length of work-piecemm1500Width of bedmm550Spindle nose  C11Spindle taper 1:20/120Spindle boremm105Power of spindle motorKw11Mode of spindle speed Three gears,smooth adjustmentL:10-200,M:180-500,H:480-1200Min.Feeding set unit of X/Z axismm0.001X/Z rapid traversemm/min4000/5000Tailstock Diametermm100Travelmm250Taper                     MT5/MT6Electric tool-postModel HAK-21240No.of tool stations Vertical four stationTool shank size mm32×32Turret indexing timeS4.1Chuck three jaw manual chuckPositioning accuracymm0.020Repositioning accuracymm0.01Overall dimensions(L*W*H)mm3600×1900×1900Machine weightKG5200Standard configuration:                                              -GSK980TC3 control system;                                          -3 jaws manual chuck ;        -4 station electric tool post ;                                                  -Manual tailstock;                                          -Automatic lubrication-Coolant system-Semi-closed metal houseOptional configuration:-Siemens808D,Fanuc0i-TF, Syntec22TA.....-Hydraulic chuck, Pneumatic chuck ;-8/12 station electric tool post or Servo , hydraulic and power turret;-Hydraulic / Pneumatic tailstock;-Chip conveyor ; -Full-closed metal house  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
