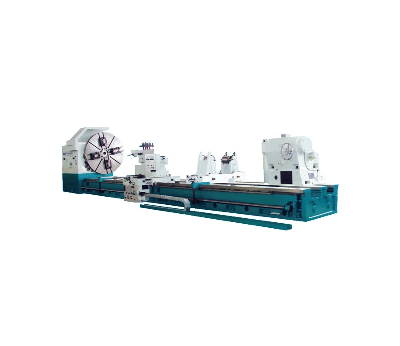

Cwz61220 Big Engine Factory Directsale Lathe

Lathe machine is mateched with Fanuc, Sigmens or Guangzhou CNC system, with programmable controller (PC) and CRT display, linear and circular interpolation. The vertical and horizontal feed adopts AC servo motor and pulse encoder feedback. The width of bed guide rail is 600mm. The whole bed guide rail adopts high strength cast iron ultrasonic frequency quenching.1. The bed saddle guide rail is close to the view, and the friction coefficient is small.2. The main shaft can adopt frequency conversion stepless speed regulation and three support main shaft structure with good rigidity.3. Wide cutting range, can process the outer circle and inner hole. End face, cutting groove, conical surface, chamfering, conical or cylindrical thread and arc surface.4. Suited for cutting workpleces which have various shapes and sizes.5. High machining precision and stable machining quality.MODELCWZ61220CAPACITY Max.swing over bed2200mmMax.swing cross slid1850mmDistance between centers3m,4m,5m,6m,8m,10m,12m,16mMax. Weigth of workpiece32tWidth of bed1600mmHEAD STOCK Spindle holeΦ85mmSpindle taperΦ120mmtaper1:7Spindle speeds3-speed hydraulic shift CVT(0.8-18)(2.4-54)(7.2-160)r/minGEAR BOX-THREADS&FEEDS Metric threads range(pitch)2-40mmInch threads range(inch)1-14Worm gear threads range(module)0.125-45mm/Spindle per revolutionCross feed range0.063-24mm/Spindle per revolutionRapid feed:long/cross3000mm/min,1500mm/minTOOL-POST Tool section70x70mmCARRIAGE Cross slide travel725mmMiddle slide travel600mmTAILSTOCK Sleeve diameter300mmSleeve taperΦ100taper1:7Sleeve travelΦ300mmSTEADY REST Close-type steady restΦ400-750mmOpen-type steady restΦ650-1200mmMOTOR Main motor80kw(DC)Rapid feed motor1.5kwTailstock motor1.5kwNet weight(kg)42000kgDimention(L*W*H)11577*2480*2280Center distance6000mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
