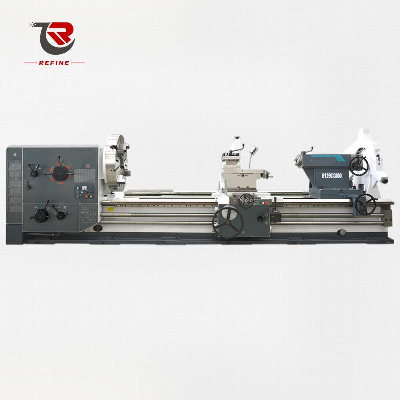

Cw61125m Lathe Machine Heavy Duty Conventional Engine Lathe Machine

PRODUCTION DESCRIPTIONCW-E series Mature structure, large power, strong rigidity, wide range of spindle speed regulation, suitable for strong force or high speed cutting, can complete the various shaft and disk parts of the inner and outer cylindrical surface, cone surface, end face, groove cutting, chamfering, drilling and tapping processes, and can process common metric thread. Ink thread, module thread, diameter thread and taper thread (special thread to consult), small tool rest can motor turning short cone, longitudinal feed to small tool rest feed compound movement can motor turning long cone, to large complex parts can show superiority.Machine equipped with tail motor drive device for the user to choose, especially the length of the specifications of the larger, reduce the labor intensity, provide the working efficiency.Machine is equipped with belt cover and safety warning signs, in order to prevent the machine operation personnel injury and equipment damage, according to user needs, chuck also provide protection, head protection and protection, in order to make sure you safe operation and the site clean.MACHINE PICTURES    PARAMETERSMACHINE TYPECW61125M-5000mmSpecificationMax swing over bed1250mmBed width755 mmMax workpiece length5000mmMax turning length4800 mmCenter Hight 625mmMax swing over toolpost880mmMax Weight of workpiece6TSpindle boxSpindle bore diameter130mmThe main shaft hole allows max. rod diameter128mmSpindle Head typeA2-15Spindle bore front taperMetric 140mmSpindle speed step when forwarding21Spindle speed step when reverse12Spindle speed range (forward)3.15~315 rpmSpindle speed range (reverse)4.5~390 rpmmax torque of spindle10.5 kNm(22kW)4-Cam Chuck 4-Cam Chuck diameter 1000mmFeeding boxSpindle and feed box transmission ratio1:1 & 8:1Vertical and horizontal feed series56 kindsFeeding rangeVertical0.1~12mm/rpm Horizontal0.05~6mm/rpmUpper toolpost0.025~3mm/rpmMetric thread1~120mm     52  kindsInch thread1/4-30        43  kindsModule thread0.5~60mm       46  kindsPitch thread1/2~60DP       49  kindsToolpostVertical distance between spindle center and tool installation surface47 mmTool section45x45 mmMax travel of the Compound toolpost300 mmSwing angel of toolpost±90°Compound toolpost screw pitch6mmMachine bed screw pitch 5mmMax horizontal travel of the cross slide670mmRapid traverse speed of the toolpostCrosswise1870 mm/minHorizontal3740 mm/minCompound rest935 mm/minSliding boxLongitudinal lead screw diameter 70mmLongitudinal lead screw pitch12mmRack modulus5mmTailstock Center sleeve diameter160mmMax travel of the center sleeve300 mmTaper of the center sleeve taper boreMetric 80mmMotor Mian Motor Power22kwMian Motor speed960rpmSliding fast moving motor power 1.5kwSliding fast moving motor speed2800rpm Coolant pump power0.15kwCoolant pump Flow quantity25L/minMachine overall dimensionMachine dimension 7950*1955*2014mmPacking dimension 8200*2050*2180mmMACHINE FEATURESIt has the interlock protection function of the light bar and the lead bar to ensure the normal operation of the feed system without failure. The slide board box of the machine tool is provided with a fast moving device, which can be moved to the desired position quickly in the longitudinal and transverse directions. Machine headstock control handle adopts centralized control, convenient and flexible operation  It can complete the cutting of cylindrical surface, conical surface, end face, grooving, chamfering, drilling and tapping of all kinds of shaft and disk parts. PACKING & SHIPPING WHY CHOOSE US/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
