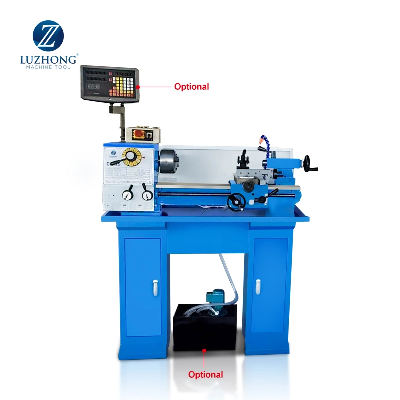

Engine lathe CJM250 Mini Small Micro Bench Top Metal Lathe Turning LatheProduct DescriptionDetailed PhotosProduct ParametersProduct description:1.Most economical,widely useful hobby lathe.2.Power longitudinal feed allows threading.3.V-way a depot double triangle and rectangle side way.4.Easy access to safety switches.5.Spindle is supported by precision tapered roller bearing.6.Head stock be gear drive power.7.Large MT4 spindle bore.8.High precision chuck. 9.Induction cuts with cross & longitudinal power feedProduct main technical Specifications:SpecificationsUnitsCJM250Max.swing over bedmm250Max.processing lengthmm500Max.swing over cross slidemm150Spindle hole diametermm26Taper of spindlemmNo.4Spindlemm80-1600r.p.m 12 The maximum horizontal stroke of cuttermm130The knife frame maximum longitudinal travelmm75Processing metric thread number 15Processing range of metric threadsmm0.25-2.5Processing inch thread number 9Processing range of inch threadsTPI12-96Longitudinal feed spindle turret at every turnmm0.03-0.275The transverse feed amount per turn spindle turretmm0.015-0.137Tailstock sleeve travelmm60Taper of tailstock sleevemmNo.3Electric machineryw750W/380V/50HZGross / net weightkg180/163Dimensions (length * width * height)mm1130×550×405Packing size (length * width * height)mm1200×620×600Company ProfileFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
