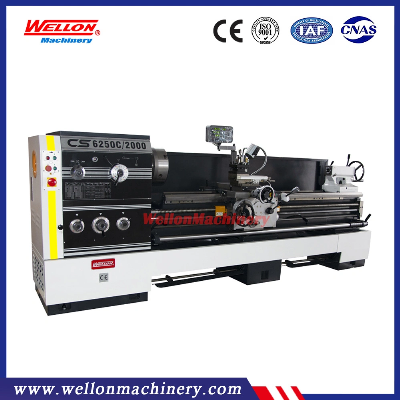

High Speed Conventional Precision Gap Bed Lathe Machine CS6250c

Products Description:High Speed Conventional Precision Gap Bed Lathe Machine CS6250C  Performence Features:Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;Threading Inch, Metric, Module and D.P.;Perform drilling, boring and groove broaching;Machine all kinds of flat stocks and those in irregular shapes; Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;There are hand brake and foot brake for users to choose;These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz). Technical parameter:SPECIFICATIONSUNITCS6250CCapacityMax. swing dia. over bedmm500Max. swing dia.in gapmm710Max. swing dia. over slidesmm300Max. workpiece length  mm1000/1500/2000/3000Bed widthmm400SpindleSpindle bore diametermm105                                               Type of spindle nose  noISO 702/II NO.8 com-lock typeSpindle speedrpm12 steps 36-1600 Spindle motor powerKW7.5TailstockDiameter of quillmm75Max. travel of quill  mm150Taper of quill (Morse)  MT5TurretTool O.D. sizemm25X25FeedMax. X travelmm145Max. Z travelmm320X feed rangemm/r65 kinds 0.063-2.52Z feed rangemm/r65 kinds 0.027-1.07Metric threadsmm22 kinds 1-14Inch threadst.p.i25 kinds 28-2Module threadsπmm18 kinds 0.5-7Diametricpitch threadst.p.i.π24 kinds 56-4Others Lengthmm2632/3132/3632/4632Widthmm975Heightmm1270Weight kg2100/2300/2500/2900   Standard accessories :3-jaw chuck4-jaw chuckFace plateSteady restFollow restDrive plateDead centersSplash guardOil trayLongitudinal mechanical stopWork lampCoolant systemFoot BrakeChuck guardTool post guardSome toolsOptional accessories :Tapper turning attachmentQuick change tool postLive centerDigital readoutThread chasing dialCompany Information:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
