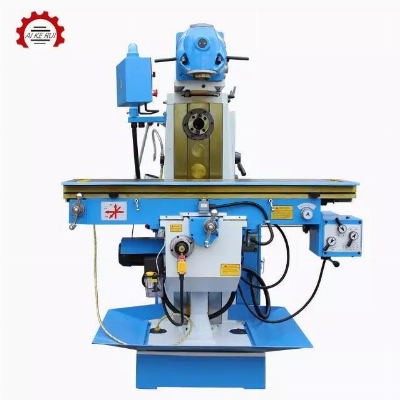

X6436 Vertical and Horizontal Universal Swivel Head Milling Machine

ModelX6436working desk size mm1500×360Workbench stroke (X/Y/Z) mm1000/320/400T-slot 3/18/80 mmSpindle taperISO40Horizontal Spindle taperISO40Distance from the centerline of the main shaft to the plane of the cantilever beam60-500 mmDistance from spindle end face to table 175 mmSpindle speed range 48-1660r/mi(12stage)Horizontal Spindle speed range40-1300r/mi(12stage)Distance from spindle end face to workbench150-550 mmDistance from horizontal axis center to workbench0-400mmWorktable vertical and horizontal feed mm/min22-555mm/min(8stage)Z:ElectricTable top and bottom feed 590 mm/minSwivel angle 360°main motor power  4KWFeed motor power1.1kwWeight(kg)2580Size2550×2050×2050Shandong ACR Machine Tool Co., Ltd. is an enterprise integrating product design, research and development, manufacturing and sales. Mainly produce and operate CNC lathes, CNC milling machines, vertical machining centers, horizontal machining centers, gantry machining centers, ordinary lathes, vertical drilling machines, radial drilling machines, ordinary milling machines, metal band saws, planers, surface grinders, etc. More than fifty series of products.FAQ1:How can I choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you.2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )7.If the above products do not meet your requirements, we can customize them according to customer requirements!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
