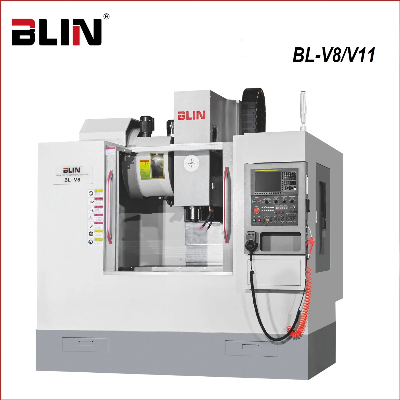

CNC Vertical Milling Machine CNC Vertical Machining Center (BL-V8/V11)

                                                               CNC Vertical Milling Machine CNC Vertical Machining Center (BL-V8/V11)-3 axes ROLLER type linear guideway, Heavy-duty type,suitable for heavy-duty cutting - Whole production process accord to TAIWAN standard    - Most parts adopt GERMAN/JAPAN/TAIWAN brand    - High speed, high precision, long using lifespan - Adopt HT300 high class cast iron,after aging treatment and FEA analysis        - Bridge shape column, high rigidity, high stability     - Use 24T Arm type ATC, adopt CAM driving, fast and stable tool changing, tool selection for bi-way as random. - 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precisionDetails:ItemSpecificationUnitBL-V8 BL-V11WorktableTable sizemm1000×5501200(1300*)×600T slot(NO./width/gap)mm5/18/905/18/100Table max. loadingkg700900TravelX/Y/Z axes travelmm800/550/550 1100/600/600 SpindleDistance from spindle nose to table surfacemm120~670120~720Distance from spindle center to column facemm600650Spindle type/BT40Spindle motor kw7.5/11; 11/15(opt.)11/15Spindle speedrpm8000(option:10000 belt-drive;12000/15000 direct-drive)Feeding axesX/Y/Z axes linear guideway widthmm35/45/45(ROLLER type)Z axes 6pcs slide blocks45/45/45(ROLLER type)X,Z axes 6pcs slide blocksX/Y/Z axes max. rapid moving speedm/min48/48/4836/36/36X/Y/Z axes ball screw dia./pitchmm40/1640/12X/Y/Z axes motor torque  Nm22/22/22PrecisionPositioning precisionmm±0.005Repeatable positioning precisionmm±0.003Tool magazineTool magazine type/24T Arm typeMax. tool weightkg78Max. tool lengthmm280Max. tool dia.(fully loaded)mm80Max. tool dia.(no adjacent)mm110Tool changing time/Tool to tool: 1.8sTool to tool: 2sOthersOverall Sizemm2500×2200×25002900×2300×2600Weightkg55007200  Main parts brand:          Item BrandSpindle bearingJAPAN-NSK/GERMANY-FAGBall screw bearing JAPAN-NACHI/GERMANY-FAG Linear guidewayTAIWAN-HIWIN,PMI/GERMANY-REXROTHBall screwTAIWAN-HIWIN/PMI Shaft couplerJAPAN-NBK/MIKI PULLEYSpindleTAIWAN-KENTURN/VYU CHENGTool magazineTAIWAN-DEXBooster cylinderTAIWAN-CHEN SOUNDPnuematic partsTAIWAN-MINDMAN Lubrication pumpJAPAN-LUBEElectric partsFRANCE-SCHNEIDERStandard configuration: -FANUC 0i MF CNC Controller-24T Arm type tool magazine     Optional configuration: -SIEMENS 828D CNC controller-Chip conveyor-Coolant through spindle-Tool setting probe    -4th axes-5th axes Other models choice:All our machines range:About us:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
