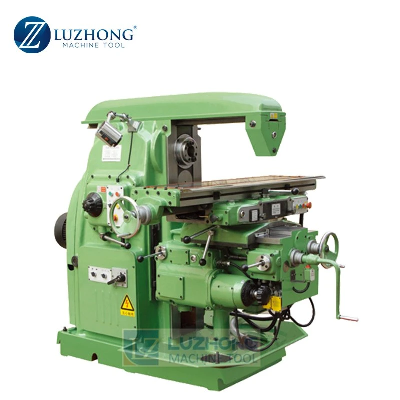

High Precision X6132 X6132B X6132BH Universal Horizontal Milling Machine

High Precision X6132 X6132B X6132BH  Universal Horizontal Milling MachineProduct DescriptionThe main performance characteristics: 1. Using rectangular guide machine is Rigid good,2. Work table and guide rail through the ultra audio spark quenching.3. Work bench X. Y.Z  are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool. 2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.Product ParametersProduct main technical parameters:SpecificationsUnitsX6132X6132BX6132BHTable sizemm320×1325320×1600320×1600Max. longitudinal of table travel(manual/automatic)mm700/680900/680900/880Max. transverse travel of table (manual/automatic)mm255/240255/240255/240Max. vertical travel of table (manual/automatic)mm320/300320/300410/390Max rotary angle of table ±45°±45°±45°Distance between spindle axis and column guide waymm30-35030-35030-440Spindle speed step 1818steps18Spindle speed ranger.m.p30-150030-150030-1500Feed range of table travel 1818steps18Main motor powerkw7.57.57.5Rapid motor powerkw2.22.22.2Overall dimensionmm2294×1770×16102294×2050×16102294×2050×1790N.W./G.W.kg2650/29502740/30402940/3240Detailed PhotosCompany ProfileFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )                     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
